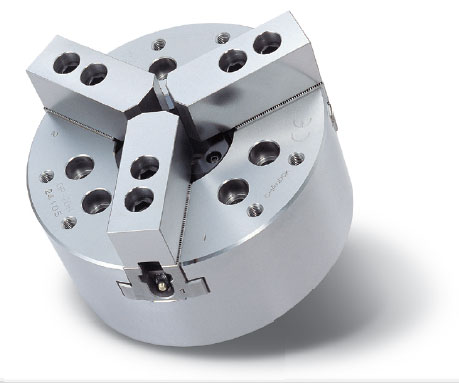

自营千岛CHANDOX高速中空油压三爪卡盘OP

型号 / 规格

主轴鼻端番号

A

B

C

D

E

E1

F

G

H

H1

I1

H2

I2

H3

价格(RMB)

(h6)

OP-204

-

110

59

85

-

-

-

4

-

70.6

-

-

-

-

-

OP-205

A₂-4

135

60

110

63.513

20

-

4

96

82.6

PCDØ118

3-M8×1.25P

-

-

-

OP-206

A₂-5

169

81

140

82.563

15

-

5

116

104.8

PCDØ145

6-M10×1.5P

-

-

-

OP-208

A₂-6(A₂-5)

210

91

170

106.375

17

23

5

150

133.4

PCDØ180

6-M10×1.5P

-

-

-

OP-210

A₂-8(A₂-6)

254

100

220

139.719

18

28

5

190

171.4

PCDØ225

6-M12×1.75P

-

-

-

OP-212

A₂-8

304

110

220

139.719

18

-

6

190

171.4

PCDØ250

6-M12×1.75P

-

-

-

OP-215

A₂-11(A₂-8)

381

133

300

196.869

22

33

6

260

235

-

-

PCDØ230

3-M12×1.75P

PCDØ300

OP-218

A₂-11(A₂-8)

450

133

300

196.869

22

33

6

260

235

PCDØ230

3-M12×1.75P

PCDØ300

3-M12×1.75P

PCDØ380

OP-221

A₂-15(A₂-11)

530

140

380

285.775

27

41

6

330.2

330.2

PCDØ300

3-M16×2P

PCDØ380

3-M16×2P

PCDØ460

OP-224

A₂-20(A₂-15)

610

149

520

412.745

27

42

6

463.6

463.6

PCDØ350

3-M16×2P

PCDØ450

3-M16×2P

PCDØ550

OP-210BH

A₂-8(A₂-6)

254

100

220

139.719

18

28

5

190

171.4

-

-

PCDØ160

3-M12×1.75P

PCDØ220

OP-212BH

A₂-8

304

108

220

139.719

18

-

6

190

171.4

-

-

PCDØ170

3-M16×2P

PCDØ260

型号 / 规格

I3

J

K

L

M

N

N

O

O

P

P

Q

R

S

T

U

V

W

X

max.

min

max.

min.

max.

min.

OP-204

-

26

3-M10×1.5P

-

14

23

20.3

11.5

6.7

3.5

-6.5

23

10

17.5

2

M32×1.5P

12

24

49.5

OP-205

-

33

3-M10×1.5P

15

14

26.2

23.5

19

6

1

-9

25

10

20

2

M40×1.5P

12

31.5

62

OP-206

-

45

6-M10×1.5P

16

20

32.35

29.6

24

7

11

-1

31

12

19

2

M55×2P

20

37.5

73

OP-208

-

52

6-M12×1.75P

18

25

39.1

35.4

30

10

14.5

-1.5

35

14

20.5

2

M60×2P

30

39.5

95

OP-210

-

75

6-M16×2P

19

30

51.5

47.1

34

12

8.5

-10.5

40

16

25

2

M85×2P

40

43

110

OP-212

-

91

6-M16×2P

25

30

61.6

56.3

46

12

8

-15

50

21

28

2

M100×2P

50

51

129

OP-215

3-M12×1.75P

117.5

6-M20×2.5P

28

43

82.3

77

46

13

7.5

-16

62

22

42.5

5

M130×2P

48

66.5

165

OP-218

3-M12×1.75P

120

6-M20×2.5P

28

43

83.8

78.5

78

18

7.5

-16

62

22

42.5

5

M130×2P

48

66.5

165

OP-221

3-M16×2P

180

6-M24×3P

33

60

119.6

114.3

63.3

21.3

10.5

-13

65

25

42.5

5

M195×2P

80

73.5

180

OP-224

3-M16×2P

205

6-M24×3P

37

60

134.4

128.4

87.3

21.3

13.5

-11

65

25

41

5

M220×3P

80

73.5

180

OP-210BH

3-M12×1.75P

78

6-M16×2P

24

30

53.1

48.6

33.55

11.05

8.95

-10.55

40

16

25

2

M87×2P

40

43

110

OP-212BH

3-M16×2P

93

6-M16×2P

27

30

63.7

58.7

45.55

12.55

8.65

-13.05

50

21

26

2

M103×2P

50

51

129

型号 /规格

Y

通孔直径(mm)

柱塞行程(mm)

爪行程[直径] (mm)

最高回转速r.p.m.(min^-1)

最大拉力

最大静夹持力 kgf (KN)

最大设定油压压力kgf/cm² (Mpa)

净重   (kg)

搭配油压缸型号

夹持范围

kgf (KN)

OP-204

-

26

10

5.4

8000

1428(14)

2850(28)

24(2.3)

3.8

P0928

Ø7~Ø110

OP-205

-

33

10

5.4

7000

1730(17)

3570(35)

29(2.8)

6.1

P1036

Ø10~Ø135

OP-206

-

45

12

5.5

6000

2140(21)

5710(56)

28(2.7)

12.5

P1246

Ø13~Ø169

OP-208

104.8

52

16

7.4

5000

3360(33)

8360(82)

26(2.5)

21.9

P1552

Ø13~Ø210

OP-210

133.4

75

19

8.8

4200

4280(42)

11010(108)

27(2.6)

33.7

P1875

Ø30~Ø254

OP-212

-

91

23

10.6

3300

5500(54)

14380(141)

27(2.6)

55.3

P2091

Ø35~Ø304

OP-215

171.4

117.5

23

10.6

2500

7140(70)

18250(179)

24.5(2.4)

106.8

P2511

Ø35~Ø381

OP-218

171.4

120

23

10.6

2000

7140(70)

18250(179)

24.5(2.4)

152

P2511

Ø40~Ø450

OP-221

235

180

23

10.6

1700

9080(89)

23760(233)

31.5(3.0)

195.2

P3420

Ø115~Ø530

OP-224

330.2

205

26

12

1400

9080(89)

23760(233)

31.5(3.0)

269.4

P3420

Ø140~Ø610

OP-210BH

133.4

78

19.5

9

4200

4280(42)

11010(108)

27(2.6)

36.7

P1878

Ø30~Ø254

OP-212BH

-

93

21

10

3300

5500(54)

14380(141)

28(2.7)

57.4

P2093

Ø35~Ø304
