￥待询价（提交订单10分钟内获取专属报价单）

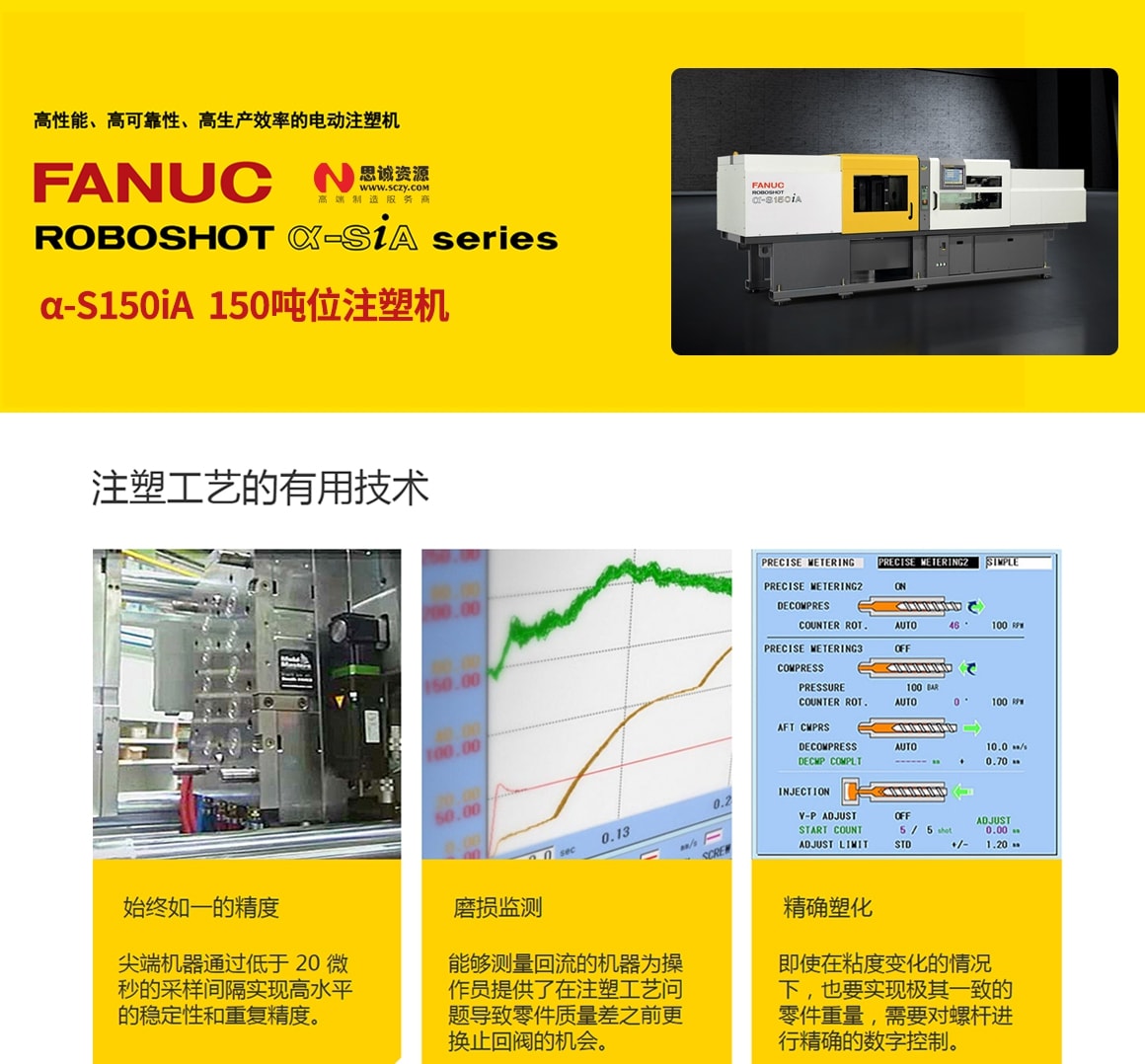

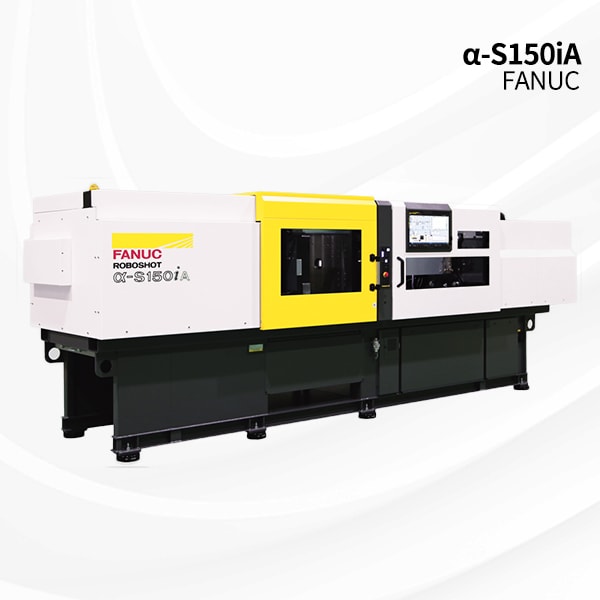

自营FANUC发那科 α-S150iA 150吨位大型进口注塑机
产品亮点：发那科150吨位大型注塑机以其强大的注射能力，适用于生产大型或具有复杂结构的精密塑料部件。该机型融合了先进的控制技术，旨在提供高频率、高稳定性的加工过程，同时保证了操作的简便性和维护的便捷性。
- 选配推荐
- 最新发布
产品详情
| 项目 | 单位 | α-S150iA | ||||||||||||
| 锁模部分 | 最大锁模力 | kN | 1500(150tonf) | |||||||||||
| 双模板 模厚(最大/最小) 单模板 | mm | 500/200 575/275 | ||||||||||||
| 开闭模行程 | mm | 440 | ||||||||||||
| 拉杆间距(宽×高) | mm | 560×510 | ||||||||||||
| 模板尺寸(宽×高) | mm | 800×750 | ||||||||||||
| 顶出点数/顶出力/顶出行程 | 点/kN/mm | 5 / 35(3.5tonf)/ 150 | ||||||||||||
| 射出部分 | 螺杆直径 | mm | 22 | 26 | 28 | 32 | 36 | 40 | 32 | 36 | 40 | 44 | 48 | 52 |
| 最大射出体积 | cm3 | 29 | 50 | 58 | 103 | 147 | 181 | 121 | 153 | 188 | 268 | 318 | 442 | |
| 射出规格 | --- | 200mm/s 规格 | ||||||||||||
| 最大射出压力 | MPa | --- | --- | --- | --- | --- | --- | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大保压压力 | MPa | --- | --- | --- | --- | --- | --- | 280 | 280 | 220 | 190 | 160 | 130 | |
| 最大射出速度 | mm/s | --- | 200 | |||||||||||
| 螺杆最大转速 | min -1 | --- | 300 | |||||||||||
| 射出规格 | --- | 330mm/s 规格(小容量射出) | 330mm/s 规格 | |||||||||||
| 最大射出压力(高填充模式） | MPa | 340 | 340 | 320 | 270 | 220 | --- | 380 | 345 | 280 | --- | --- | --- | |
| 最大射出压力 | MPa | 260 | 260 | 240 | 220 | 190 | 160 | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大保压压力 | MPa | 260 | 260 | 220 | 200 | 170 | 140 | 280 | 280 | 260 | 220 | 190 | 160 | |
| 最大射出速度 | mm/s | 330 | 330 | |||||||||||
| 螺杆最大转速 | min -1 | 450 | 400 | |||||||||||
| 射出规格 | --- | 500mm/s 规格(小容量射出) | ||||||||||||
| 最大射出压力(高填充模式） | MPa | 340 | 320 | 280 | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出压力 | MPa | 260 | 260 | 240 | 220 | 170 | --- | --- | --- | --- | --- | --- | --- | |
| 最大保压压力 | MPa | 260 | 260 | 220 | 200 | 170 | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出速度 | mm/s | 500 | --- | --- | ||||||||||
| 螺杆最大转速 | min -1 | 450 | --- | --- | ||||||||||
| 射出规格 | --- | 1200mm/s 规格(高速射出) | ||||||||||||
| 最大射出压力 | MPa | 400 | 380 | 350 | 270 | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大保压压力 | MPa | 350 | 250 | 210 | 160 | --- | --- | --- | --- | --- | --- | --- | --- | |
| 最大射出速度 | mm/s | 1200 | --- | --- | --- | |||||||||
| 螺杆最大转速 | min -1 | 450 | --- | --- | --- | |||||||||
