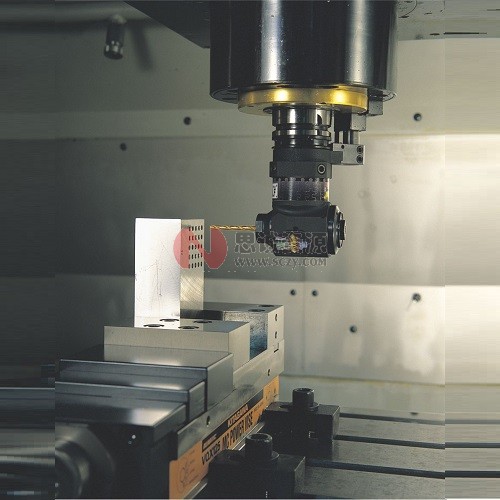

自营日本MST90°袖珍型角度头
产品亮点：法兰克FANUC机专用袖珍型角度头-构造简单, 便宜快速,组装非常简单；无需零部件.袖珍型角度头是以80% 钻孔和攻丝加工为目的
- 选配推荐
- 最新发布
产品详情
法兰克FANUC机专用袖珍型角度头-构造简单, 便宜快速,组装非常简单；无需零部件.袖珍型角度头是以80% 钻孔和攻丝加工为目的
| 型号 | Fig. | φD | L | M | kg |
| BT30-HFD7-122 | 1 | 1 ～ 7 | 122 | 70 | 2.3 |
| BT30-HFD7-182 | 182 | 130 | 3.0 | ||
| BT30-HFD7L-120 | 120 | 57 | 1.8 | ||
| BT30-HFD12-122 | 2 | 2.5 ～ 13 | 122 | 70 | 2.9 |
| BT30-HFA10-120 | 3 | 2.4 ～ 10 | 120 | 65 | 1.8 |
| BT30-HFT4-122 | 5 | M2 ～ M 8 | 122 | 70 | 2.3 |
| BT30-HFT4-182 | 182 | 130 | 3.0 | ||
| BT30-HFT4L-120 | 120 | 57 | 1.8 | ||
| BT30-HFT6-122 | 6 | M3 ～ M12 | 122 | 70 | 2.9 |
| BT40-HFD7-120 | 1 | 1 ～ 7 | 120 | 70 | 3.0 |
| BT40-HFD7-180 | 180 | 130 | 3.3 | ||
| BT40-HFD12-120 | 2 | 2.5 ～ 13 | 120 | 70 | 3.6 |
| BT40-HFD12-180 | 180 | 130 | 4.9 | ||
| BT40-HFA20-135 | 4 | 5.8 ～ 20 | 135 | 77 | 4.4 |
| BT40-HFA20-195 | 195 | 137 | 5.6 | ||
| BT40-HFT4-120 | 5 | M2 ～ M 8 | 120 | 70 | 3.0 |
| BT40-HFT4-180 | 180 | 130 | 3.3 | ||
| BT40-HFT6-120 | 6 | M3 ～ M12 | 120 | 70 | 3.6 |
| BT40-HFT6-180 | 180 | 130 | 4.9 | ||
| BT40-HFT12-135 | 7 | M3 ～ M16 | 135 | 77 | 4.4 |
| BT40-HFT12-195 | 195 | 137 | 5.6 | ||
| BT50-HFD7-195 | 1 | 1 ～ 7 | 195 | 130 | 6.4 |
| BT50-HFD7-255 | 255 | 190 | 6.8 | ||
| BT50-HFD12-135 | 2 | 2.5 ～ 13 | 135 | 70 | 6.3 |
| BT50-HFD12-195 | 195 | 130 | 7.6 | ||
| BT50-HFD12-255 | 255 | 190 | 8.9 | ||
| BT50-HFA20-150 | 4 | 5.8 ～ 20 | 150 | 77 | 7.1 |
| BT50-HFA20-210 | 210 | 137 | 8.3 | ||
| BT50-HFA20-270 | 270 | 197 | 9.4 | ||
| BT50-HFT4-195 | 5 | M2 ～ M 8 | 195 | 130 | 6.4 |
| BT50-HFT4-255 | 255 | 190 | 6.8 | ||
| BT50-HFT6-135 | 6 | M3 ～ M12 | 135 | 70 | 6.3 |
| BT50-HFT6-195 | 195 | 130 | 7.6 | ||
| BT50-HFT6-255 | 255 | 190 | 8.9 | ||
| BT50-HFT12-150 | 7 | M3 ～ M16 | 150 | 77 | 7.1 |
| BT50-HFT12-210 | 210 | 137 | 8.3 | ||
| BT50-HFT12-270 | 270 | 197 | 9.4 | ||
| A63-HFD7-183 | 1 | 1 ～ 7 | 183 | 130 | 3.5 |
| A63-HFD7-243 | 243 | 190 | 3.9 | ||
| A63-HFD12-123 | 2 | 2.5 ～ 13 | 123 | 70 | 3.3 |
| A63-HFD12-183 | 183 | 130 | 4.7 | ||
| A63-HFD12-243 | 243 | 190 | 6.0 | ||
| A63-HFA20-198 | 4 | 5.8 ～ 20 | 198 | 137 | 5.4 |
| A63-HFA20-258 | 258 | 197 | 6.5 | ||
| A63-HFT4-183 | 5 | M2 ～ M 8 | 183 | 130 | 3.5 |
| A63-HFT4-243 | 243 | 190 | 3.9 | ||
| A63-HFT6-123 | 6 | M3 ～ M12 | 123 | 70 | 3.3 |
| A63-HFT6-183 | 183 | 130 | 4.7 | ||
| A63-HFT6-243 | 243 | 190 | 6.0 | ||
| A63-HFT12-198 | 7 | M3 ～ M16 | 198 | 137 | 5.4 |
| A63-HFT12-258 | 258 | 197 | 6.5 |
| 型号 | Fig. | φD | L | M | kg |
| DN40A-HFD7-135 | 1 | 1 ～ 7 | 135 | 70 | 3.1 |
| DN40A-HFD7-195 | 195 | 130 | 3.4 | ||
| DN40A-HFD12-135 | 2 | 2.5～ 13 | 135 | 70 | 3.7 |
| DN40A-HFD12-195 | 195 | 130 | 5.0 | ||
| DN40A-HFA20-150 | 4 | 5.8～ 20 | 150 | 77 | 4.7 |
| DN40A-HFA20-210 | 210 | 137 | 5.8 | ||
| DN40A-HFT4-135 | 5 | M2～M 8 | 135 | 70 | 3.1 |
| DN40A-HFT4-195 | 195 | 130 | 3.4 | ||
| DN40A-HFT6-135 | 6 | M3～M12 | 135 | 70 | 3.7 |
| DN40A-HFT6-195 | 195 | 130 | 5.0 | ||
| DN40A-HFT12-150 | 7 | M3～M16 | 150 | 77 | 4.7 |
| DN40A-HFT12-210 | 210 | 137 | 5.8 | ||
| DN50A-HFD7-195 | 1 | 1 ～ 7 | 195 | 130 | 5.9 |
| DN50A-HFD7-255 | 255 | 190 | 6.3 | ||
| DN50A-HFD12-135 | 2 | 2.5～ 13 | 135 | 70 | 5.8 |
| DN50A-HFD12-195 | 195 | 130 | 7.1 | ||
| DN50A-HFD12-255 | 255 | 190 | 8.4 | ||
| DN50A-HFA20-150 | 4 | 5.8～ 20 | 150 | 77 | 6.6 |
| DN50A-HFA20-210 | 210 | 137 | 7.8 | ||
| DN50A-HFA20-270 | 270 | 197 | 8.9 | ||
| DN50A-HFT4-195 | 5 | M2～M 8 | 195 | 130 | 5.9 |
| DN50A-HFT4-255 | 255 | 190 | 6.3 | ||
| DN50A-HFT6-135 | 6 | M3～M12 | 135 | 70 | 5.8 |
| DN50A-HFT6-195 | 195 | 130 | 7.1 | ||
| DN50A-HFT6-255 | 255 | 190 | 8.4 | ||
| DN50A-HFT12-150 | 7 | M3～M16 | 150 | 77 | 6.6 |
| DN50A-HFT12-210 | 210 | 137 | 7.8 | ||
| DN50A-HFT12-270 | 270 | 197 | 8.9 |
