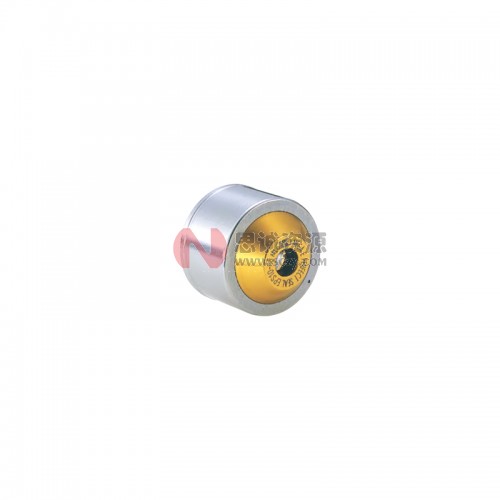

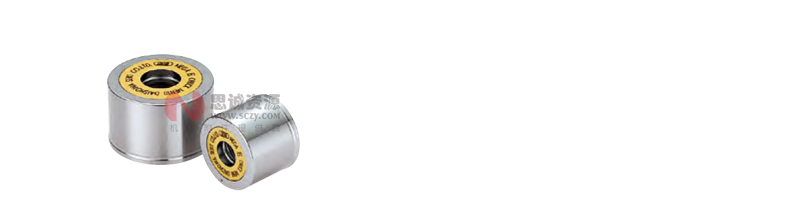

自营日本BIG精密筒夹美夹E型螺母
- 选配推荐
- 最新发布
产品详情
| 型号 | 螺母外径 | 对应本体 |
| MEN6 | 25 | MEGA 6E |
| MEN8 | 30 | MEGA 8E |
| MEN10 | 35 | MEGA10E |
| MEN13 | 42 | MEGA13E |

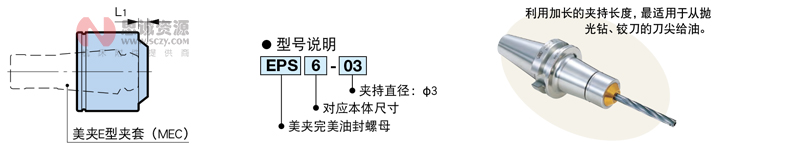

| 型号 | L1 | 适用刃具 柄径 | 对应夹套 型号 |
| EPS6-03 | 5.6 | 3 | MEC 6- 3 |
| EPS6-4 | 5.2 | 4 | - 4 |
| EPS6-5 | 5 | - 5 | |
| EPS6-6 | 6 | - 6 | |
| EPS8-03 | 6.4 | 3 | MEC 8- 3 |
| EPS8-4 | 6.0 | 4 | - 4 |
| EPS8-5 | 5 | - 5 | |
| EPS8-6 | 6 | - 6 | |
| EPS8-7 | 5.6 | 7 | - 7 |
| EPS8-8 | 8 | - 8 | |
| EPS10-03 | 6.4 | 3 | MEC10- 3 |
| EPS10-4 | 6.0 | 4 | - 4 |
| EPS10-5 | 5 | - 5 | |
| EPS10-6 | 6 | - 6 | |
| EPS10-7 | 6.3 | 7 | - 7 |
| EPS10-8 | 8 | - 8 | |
| EPS10-9 | 5.7 | 9 | - 9 |
| EPS10-10 | 10 | -10 | |
| EPS13-03 | 6.4 | 3 | MEC13- 3 |
| EPS13-4 | 6.0 | 4 | - 4 |
| EPS13-5 | 5 | - 5 | |
| EPS13-6 | 6 | - 6 | |
| EPS13-7 | 6.3 | 7 | - 7 |
| EPS13-8 | 6.5 | 8 | - 8 |
| EPS13-9 | 9 | - 9 | |
| EPS13-10 | 10 | -10 | |
| EPS13-11 | 6.2 | 11 | -11 |
| EPS13-12 | 12 | -12 |

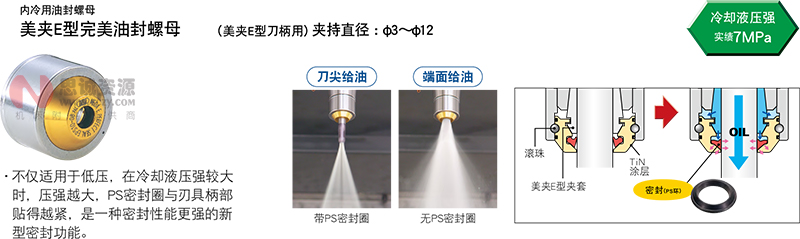

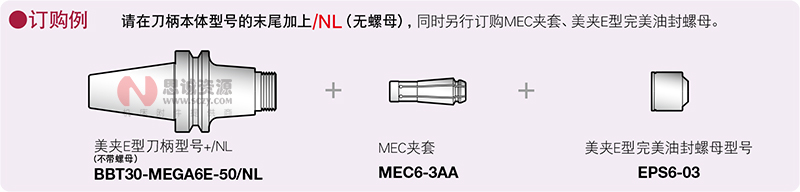

购买美夹E型完美油封螺母时，也可以选择不带标准螺母的“无螺母本体”
