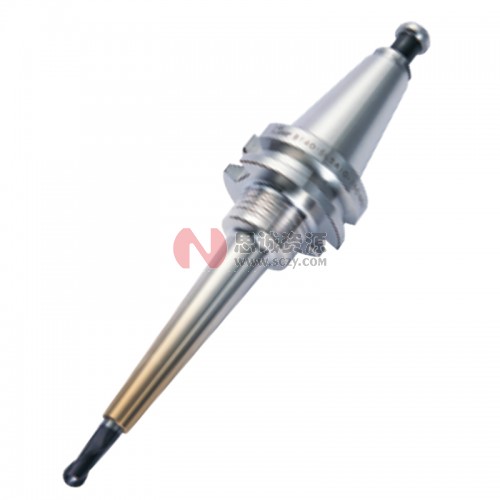

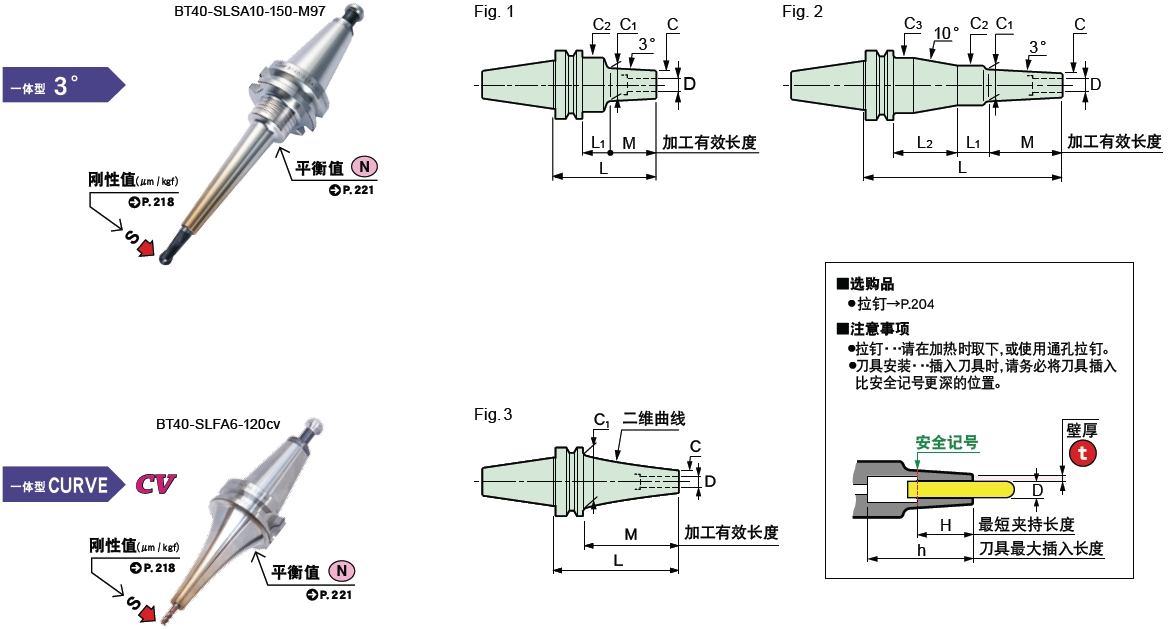

自营日本MST热装刀柄BT40一体型

日本MST一体式热缩刀柄BT40系列，刀柄材料采用热装专用特殊不锈钢，具有高刚性、高精度、高夹持力、最适合于通冷等特点

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S

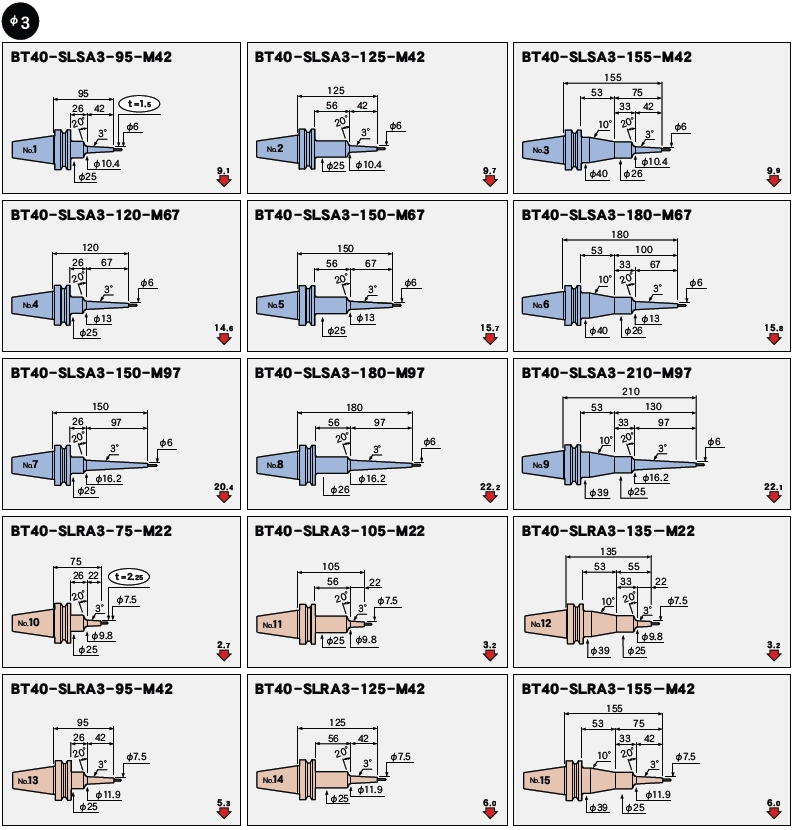

BT40-SLSA3-95-M42	1	3	6	1.5	95	42	26		10.4	26		4	9	130	1.0	2.3	9.3
BT40-SLSA3-120-M67					120	67			13					155		3.1	14.9
BT40-SLSA3-125-M42					125	42	56		10.4					160	1.1	2.5	9.9
BT40-SLSA3-150-M67					150	67			13					185		3.2	15.8
BT40-SLSA3-150-M97						97	26		16.2							4.0	20.7
BT40-SLSA3-155-M42	2				155	42	33	53	10.4		40			190	1.4	2.7	9.9
BT40-SLSA3-180-M67					180	67			13					215		3.4	15.8
BT40-SLSA3-180-M97	1					97	56		16.2						1.2	4.1	22.2
BT40-SLSA3-210-M97	2				210		33	53			40			245	1.4	4.3	22.1
BT40-SLRA3-75-M22	1	3	7.5	2.25	75	22	26		9.8	25		4	9	110	1.0	2.6	2.7
BT40-SLRA3-95-M42					95	42			11.9					130		2.9	5.3
BT40-SLRA3-105-M22					105	22	56		9.8	26				140	1.1	2.7	3.2

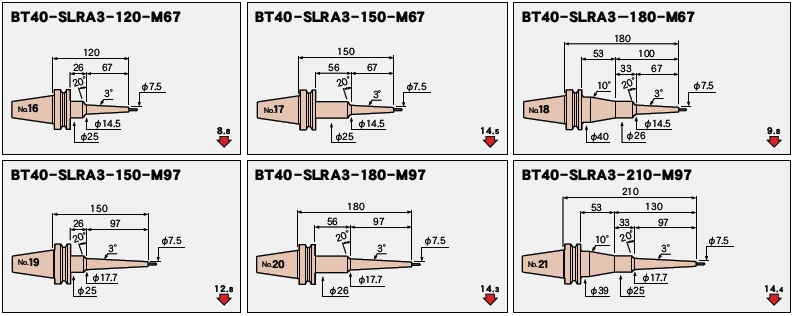

BT40-SLRA3-120-M67					120	67	26		14.5					155	1.0	3.4	8.9
BT40-SLRA3-125-M42					125	42	56		11.9					160	1.1	3.0	5.9
BT40-SLRA3-135-M22	2				135	22	33	53	9.8	25	39			170	1.4	2.9	3.2
BT40-SLRA3-150-M67	1				150	67	56		14.5	26				185	1.1	3.5	9.8
BT40-SLRA3-150-M97						97	26		17.7							4.1	12.9
BT40-SLRA3-155-M42	2				155	42	33	53	11.9		40			190	1.4	3.2	6.0
BT40-SLRA3-180-M67					180	67			14.5					215		3.7	9.8
BT40-SLRA3-180-M97	1					97	56		17.7						1.2	4.2	14.3

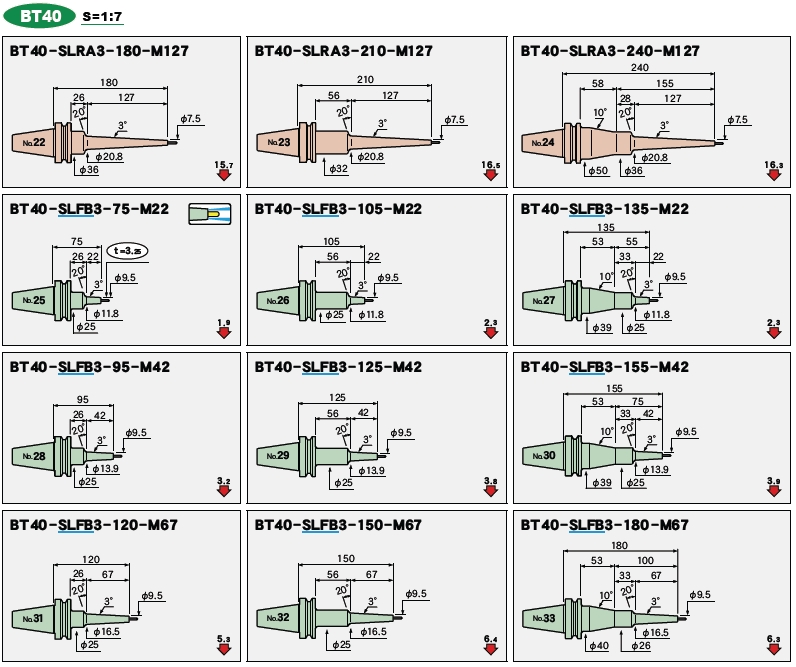

BT40-SLRA3-180-M127						127	26		20.8	36					1.1	5.4	15.7
BT40-SLRA3-210-M97	2				210	97	33	53	17.7	26	40			245	1.5	4.4	14.3
BT40-SLRA3-210-M127	1					127	56		20.8	36					1.3	5.5	16.2
BT40-SLRA3-240-M127	2				240		28	58			50			275	1.8	5.8	16.3
BT40-SLFB3-75-M22	1	3	9.5	3.25	75	22	26		11.8	25		4	9	110	1.0	2.4	1.9
BT40-SLFB3-95-M42					95	42			13.9	26				130		2.7	3.2
BT40-SLFB3-105-M22					105	22	56		11.8					140	1.1	2.5	2.2
BT40-SLFB3-120-M67					120	67	26		16.5					155		3.4	5.3
BT40-SLFB3-125-M42					125	42	56		13.9	25				160		2.8	3.9
BT40-SLFB3-135-M22	2				135	22	33	53	11.8		39			170	1.4	2.7	2.3
BT40-SLFB3-150-M67	1				150	67	56		16.5	26				185	1.2	3.6	6.3
BT40-SLFB3-155-M42	2				155	42	33	53	13.9	25	39			190	1.4	3.0	3.9
BT40-SLFB3-180-M67					180	67			16.5	26	40			215		3.8	6.3

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S

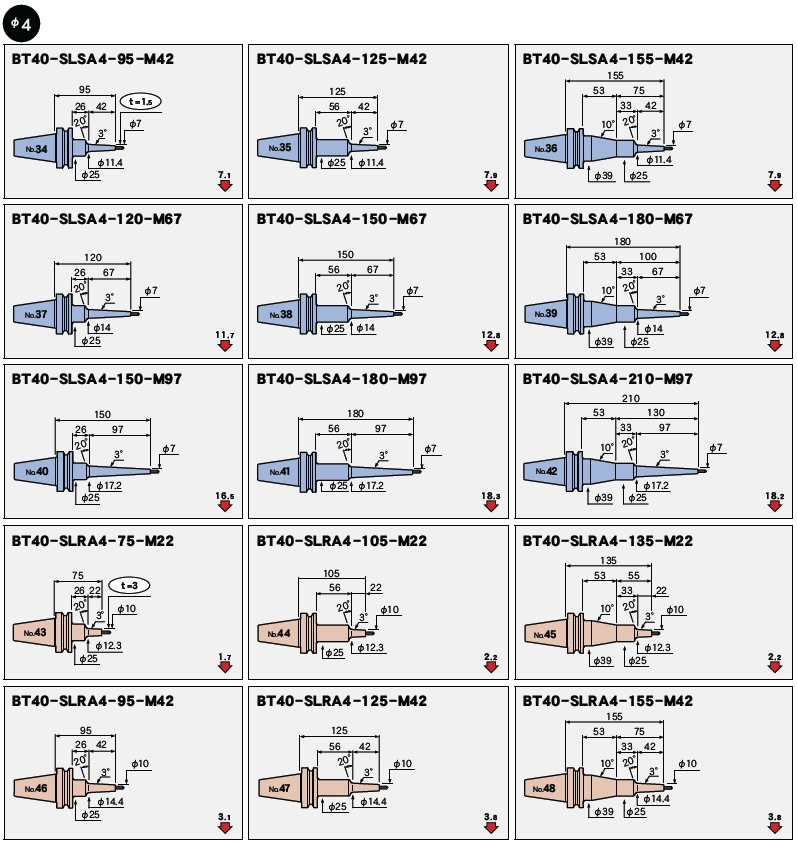

BT40-SLSA4-95-M42	1	4	7	1.5	95	42	26	-	11.4	25	-	5	12	130	1.0	3.1	7.1
BT40-SLSA4-120-M67					120	67			14					155			11.7
BT40-SLSA4-125-M42					125	42	56		11.4	26				160	1.1	3.3	7.9
BT40-SLSA4-150-M67					150	67			14	25				185			12.8
BT40-SLSA4-150-M97						97	26		17.2	26						4.1	16.7
BT40-SLSA4-155-M42	2				155	42	33	53	11.4		40			190	1.4	3.5	7.9
BT40-SLSA4-180-M67					180	67			14					215			12.8
BT40-SLSA4-180-M97	1					97	56	-	17.2	25	-				1.2	4.2	18.3
BT40-SLSA4-210-M97	2				210		33	53			39			245	1.5	4.4	18.2
BT40-SLRA4-75-M22	1	4	10	3	75	22	26	-	12.3	25	-	5	12	110	1.0	2.7	1.7
BT40-SLRA4-95-M42					95	42			14.4	26				130		3.1	3.1
BT40-SLRA4-105-M22					105	22	56		12.3					140	1.1	2.8	2.1

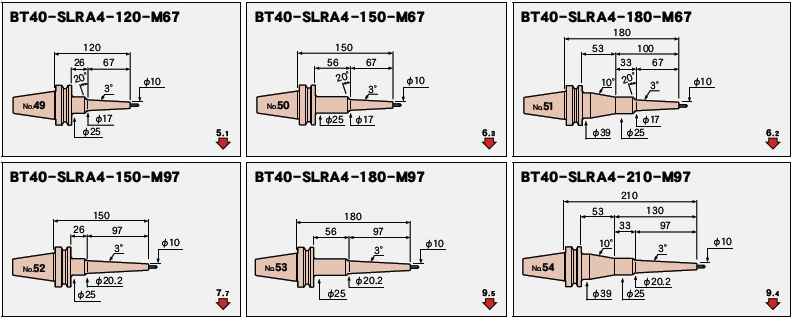

BT40-SLRA4-120-M67					120	67	26		17	25				155		3.9	5.1
BT40-SLRA4-125-M42					125	42	56		14.4	26				160		3.3	3.7
BT40-SLRA4-135-M22	2				135	22	33	53	12.3		40			170	1.4	3.0	2.1
BT40-SLRA4-150-M67	1				150	67	56	-	17	25	-			185	1.2	4.0	6.3
BT40-SLRA4-150-M97						97	26		20.2						1.1	4.8	7.7
BT40-SLRA4-155-M42	2				155	42	33	53	14.4	26	40			190	1.4	3.5	3.7
BT40-SLRA4-180-M67					180	67			17	25	39			215		4.2	6.2
BT40-SLRA4-180-M97	1					97	56	-	20.2	26	-				1.2	4.9	9.2
BT40-SLRA4-180-M127						127	26		23.3	36					1.3	6.8	9.3
BT40-SLRA4-210-M97	2				210	97	33	53	20.2	26	40			245	1.5	5.1	9.1
BT40-SLRA4-210-M127	1					127	56	-	23.3	36	-					7.0	9.9
BT40-SLRA4-240-M127	2				240		28	58			50			275	2.0	7.3
BT40-SLFB4-75-M22	1	4	12	4	75	22	26	-	14.3	26	-	5	12	110	1.0	2.5	1.3
BT40-SLFB4-95-M42					95	42			16.4	25				130	1.1	3.0	2.2
BT40-SLFB4-105-M22					105	22	56		14.3					140		2.7	1.8
BT40-SLFB4-120-M67					120	67	26		19					155		3.8	3.5
BT40-SLFB4-125-M42					125	42	56		16.4	26				160	1.2	3.1	2.8
BT40-SLFB4-135-M22	2				135	22	33	53	14.3		40			170	1.4	2.9	1.8
BT40-SLFB4-150-M67	1				150	67	56	-	19		-			185	1.2	4.0	4.5
BT40-SLFB4-155-M42	2				155	42	33	53	16.4		40			190	1.4	3.3	2.8
BT40-SLFB4-180-M67					180	67			19					215	1.5	4.2	4.5

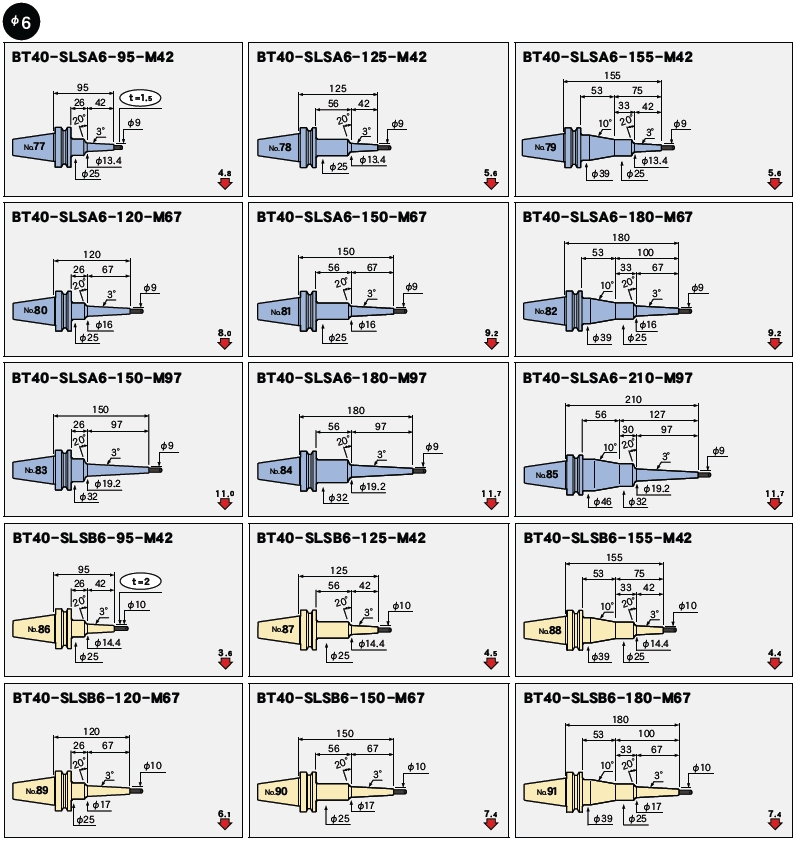

BT40-SLSA6-95-M42	1	6	9	1.5	95	42	26	-	13.4	25	-	7	18	130	1.0	3.3	4.8
BT40-SLSA6-120-M67					120	67			16	26				155	1.1	4.4	8.0
BT40-SLSA6-125-M42					125	42	56		13.4	25				160		3.5	5.6
BT40-SLSA6-150-M67					150	67			16					185	1.2	4.5	9.2
BT40-SLSA6-150-M97						97	26		19.2	36						5.9	11.0
BT40-SLSA6-155-M42	2				155	42	33	53	13.4	25	39			190	1.4	3.7	5.6
BT40-SLSA6-180-M67					180	67			16	26	40			215		4.7	9.0
BT40-SLSA6-180-M97	1					97	56	-	19.2	36	-					6.1	11.4
BT40-SLSA6-210-M97	2				210		28	58			50			245	1.9	6.4	11.5
BT40-SLSB6-95-M42	1	6	10	2	95	42	26	-	14.4	25	-	8	18	130	1.0	4.0	3.6
BT40-SLSB6-120-M67					120	67			17					155	1.1	5.4	6.1
BT40-SLSB6-125-M42					125	42	56		14.4					160		4.1	4.5
BT40-SLSB6-150-M67					150	67			17					185	1.2	5.5	7.4

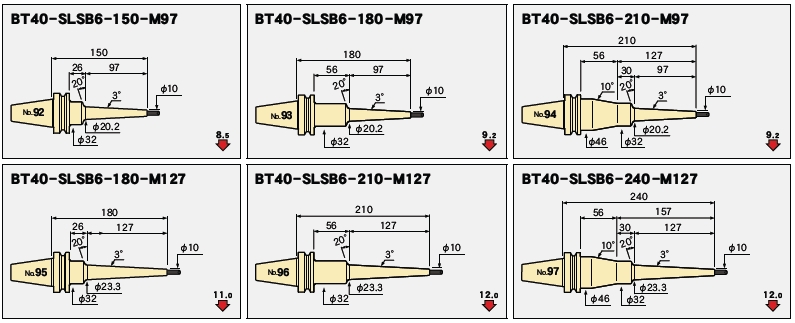

BT40-SLSB6-150-M97						97	26		20.2	32						7.2	8.5
BT40-SLSB6-155-M42	2				155	42	33	53	14.4	26	40			190	1.4	4.3	4.5
BT40-SLSB6-180-M67					180	67			17	25	39			215		5.7	7.4
BT40-SLSB6-180-M97	1					97	56	-	20.2	36	-					7.4	9.3
BT40-SLSB6-180-M127						127	26		23.3						1.3	8.9	11.4
BT40-SLSB6-210-M97	2				210	97	28	58	20.2		50			245	1.9	7.7	9.4
BT40-SLSB6-210-M127	1					127	56	-	23.3		-				1.5	9.1	12.1
BT40-SLSB6-210-M157						157	26		26.5						1.4	10.6	13.7
BT40-SLSB6-240-M127	2				240	127	28	58	23.3		50			275	2.0	9.4	12.1
BT40-SLSB6-240-M157	1					157	56	-	26.5		-				1.7	10.8	14.5
BT40-SLSB6-270-M157	2				270		28	58			50			305	2.1	11.0	14.6

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S
BT40-SLRB6-75-M22	1	6	14	4	75	22	26	-	16.3	32	-	8	18	110	1.1	3.2	1.0
BT40-SLRB6-95-M42					95	42			18.4					130		4.3	1.6
BT40-SLRB6-105-M22					105	22	56		16.3	36				140	1.3	3.3	1.1
BT40-SLRB6-120-M67					120	67	26		21	32				155	1.2	5.6	2.6
BT40-SLRB6-125-M42					125	42	56		18.4					160	1.3	4.4	1.9
BT40-SLRB6-135-M22	2				135	22	28	58	16.3	36	50			170	1.8	3.6	1.1
BT40-SLRB6-150-M67	1				150	67	56	-	21	32	-			185	1.3	5.8	3.0
BT40-SLRB6-155-M42	2				155	42	28	58	18.4	36	50			190	1.8	4.7	1.8
BT40-SLRB6-180-M67					180	67			21					215	1.9	6.1	2.9

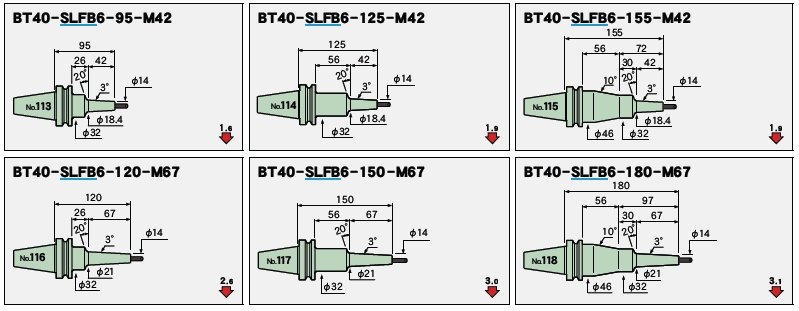

BT40-SLFB6-75-M22	1	6	14	4	75	22	26	-	16.3	32	-	8	18	110	1.1	3.2	1.0
BT40-SLFB6-95-M42					95	42			18.4					130		4.3	1.6
BT40-SLFB6-105-M22					105	22	56		16.3					140	1.2	3.3	1.2
BT40-SLFB6-120-M67					120	67	26		21	36				155		5.6	2.5
BT40-SLFB6-125-M42					125	42	56		18.4	32				160	1.3	4.4	1.9
BT40-SLFB6-135-M22	2				135	22	30	56	16.3		46			170	1.6	3.6	1.2
BT40-SLFB6-150-M67	1				150	67	56	-	21		-			185	1.3	5.8	3.0
BT40-SLFB6-155-M42	2				155	42	30	56	18.4		46			190	1.6	4.7	1.9
BT40-SLFB6-180-M67					180	67	28	58	21	36	50			215	1.9	6.1	2.9

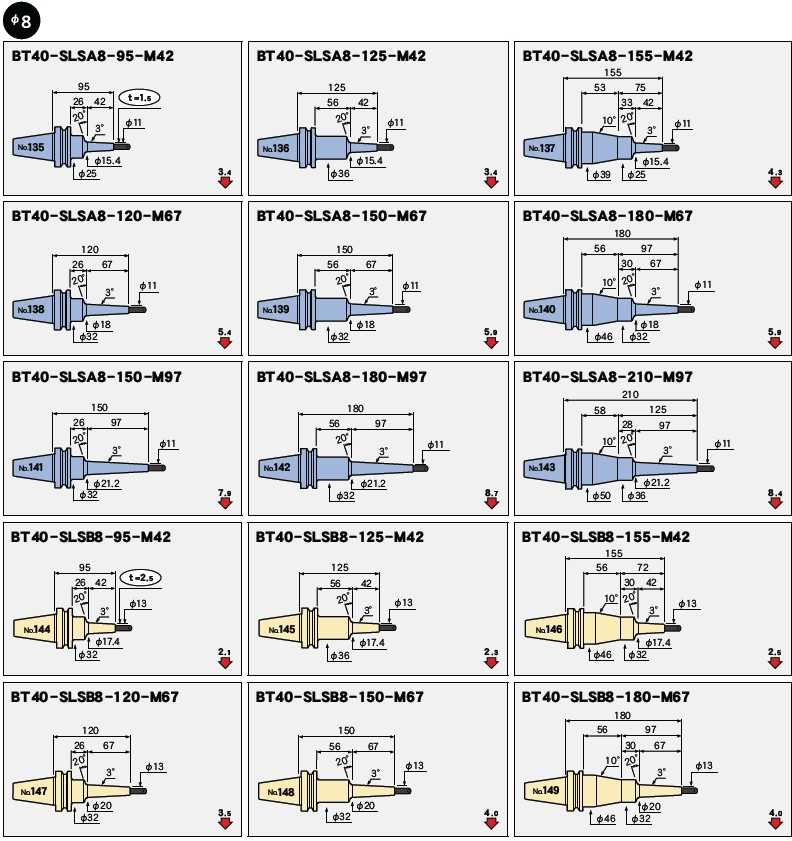

BT40-SLSA8-95-M42	1	8	11	1.5	95	42	26	-	15.4	25	-	9	24	130	1.0	4.6	3.4
BT40-SLSA8-120-M67					120	67			18	36				155	1.1	6.3	5.4
BT40-SLSA8-125-M42					125	42	56		15.4					160	1.3	4.7	3.4
BT40-SLSA8-150-M67					150	67			18					185		6.5	5.7
BT40-SLSA8-150-M97						97	26		21.2						1.2	8.4	7.8
BT40-SLSA8-155-M42	2				155	42	33	53	15.4	25	39			190	1.4	5.0	4.3
BT40-SLSA8-180-M67					180	67	28	58	18	36	50			215	1.8	6.7	5.7
BT40-SLSA8-180-M97	1					97	56		21.2						1.4	8.6	8.3
BT40-SLSA8-210-M97	2				210		28	58			50			245	1.9	8.8	8.4

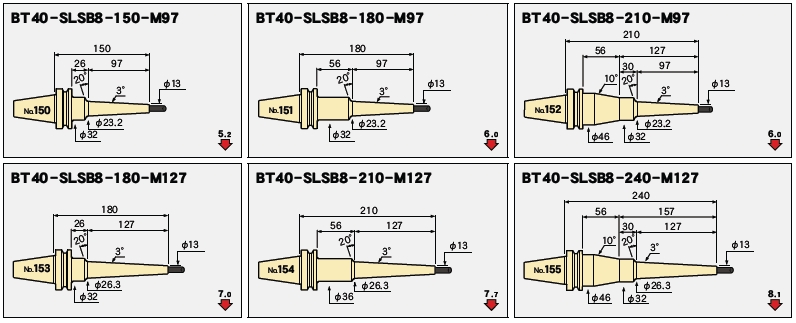

BT40-SLSB8-95-M42	1	8	13	2.5	95	42	26	-	17.4	32	-	10	24	130	1.1	5.3	2.1
BT40-SLSB8-120-M67					120	67			20					155		7.4	3.5
BT40-SLSB8-125-M42					125	42	56		17.4	36				160	1.3	5.5	2.3
BT40-SLSB8-150-M67					150	67			20					185	1.4	7.6	3.9
BT40-SLSB8-150-M97						97	26		23.2	32					1.2	10.0	5.2
BT40-SLSB8-155-M42	2				155	42	30	56	17.4	32	46			190	1.6	5.7	2.5
BT40-SLSB8-180-M67					180	67	28	58	20	36	50			215	1.8	7.9	3.9
BT40-SLSB8-180-M97	1					97	56	-	23.2		-				1.4	10.2	5.7
BT40-SLSB8-180-M127						127	26		26.3						1.3	12.6	7.0
BT40-SLSB8-210-M97	2				210	97	28	58	23.2-		50			245	1.9	10.4	5.8
BT40-SLSB8-210-M127	1					127	56	-	26.3		-				1.5	12.7	7.7

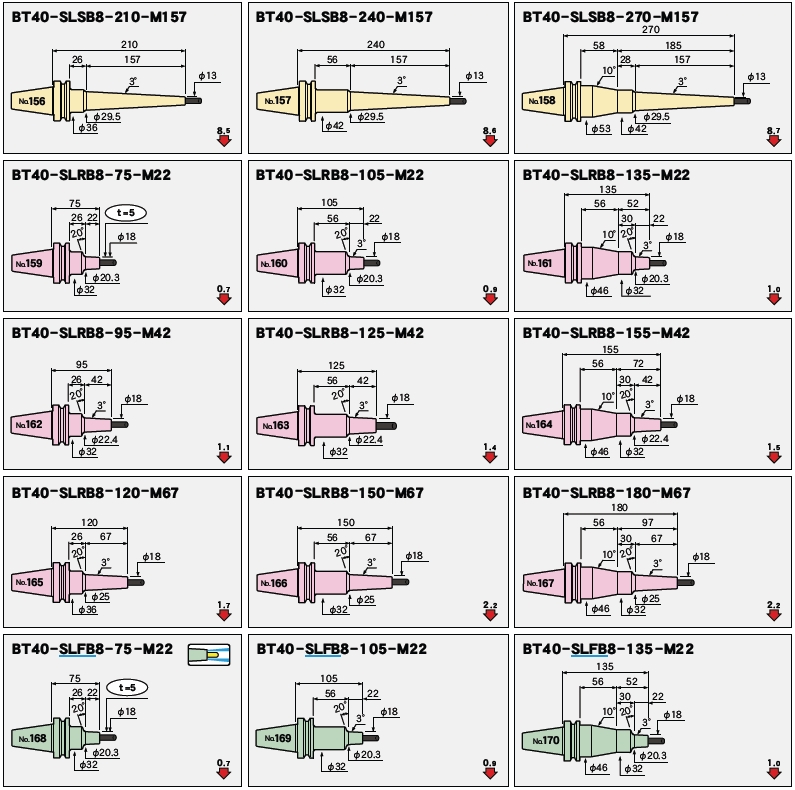

BT40-SLSB8-210-M157						157	26		29.5						1.4	15.1	8.5
BT40-SLSB8-240-M127	2				240	127	28	58	26.3		50			275	2.0	13.0	7.7
BT40-SLSB8-240-M157	1					157	56	-	29.5		-				1.7	15.3	9.4
BT40-SLSB8-270-M157	2				270		28	58		42	53			305	2.2	15.6	8.7
BT40-SLRB8-75-M22	1	8	18	5	75	22	26	-	20.3	32	-	10	24	110	1.1	3.6	0.7
BT40-SLRB8-95-M42					95	42			22.4	36				130	1.2	5.3	1.0
BT40-SLRB8-105-M22					105	22	56		20.3					140	1.3	3.8	0.8
BT40-SLRB8-120-M67					120	67	26		25					155	1.2	7.5	1.6
BT40-SLRB8-125-M42					125	42	56		22.4					160	1.4	5.5	1.2
BT40-SLRB8-135-M22	2				135	22	30	56	20.3	32	46			170	1.6	4.1	1.0
BT40-SLRB8-150-M67	1				150	67	56		25	36				185	1.5	7.6	1.9
BT40-SLRB8-155-M42	2				155	42	30	56	22.4	32	46			190	1.7	5.8	1.5
BT40-SLRB8-180-M67					180	67	28	58	25	36	50			215	1.9	7.9	2.0
BT40-SLFB8-75-M22	1	8	18	5	75	22	26	-	20.3	36	-	10	24	110	1.1	3.6	0.7

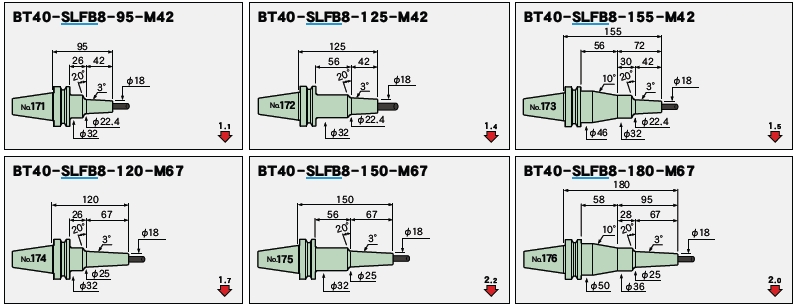

BT40-SLFB8-95-M42					95	42			22.4	32				130		5.3	1.1
BT40-SLFB8-105-M22					105	22	56		20.3	36				140	1.3	3.8	0.8
BT40-SLFB8-120-M67					120	67	26		25	32				155	1.2	7.5	1.7
BT40-SLFB8-125-M42					125	42	56		22.4	36				160	1.4	5.5	1.2
BT40-SLFB8-135-M22	2				135	22	30	56	20.3	32	46			170	1.6	4.1	1.0
BT40-SLFB8-150-M67	1				150	67	56	-	25		-			185	1.4	7.6	2.2
BT40-SLFB8-155-M42	2				155	42	30	56	22.4		46			190	1.7	5.8	1.5
BT40-SLFB8-180-M67					180	67	28	58	25	36	50			215	1.9	7.9	2.0

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S
BT40-SLSA10-95-M42	1	10	13	1.5	95	42	26	-	17.4	25	-	11	30	130	1.0	5.5	2.6
BT40-SLSA10-120-M67					120	67			20	36				155	1.1	8.1	4.0
BT40-SLSA10-125-M42					125	42	56		17.4					160	1.3	5.7	2.5
BT40-SLSA10-150-M67					150	67			20					185	1.4	8.2	4.3
BT40-SLSA10-150-M97						97	26		23.2						1.2		5.9
BT40-SLSA10-155-M42	2				155	42	28	58	17.4		50			190	1.8	5.9	2.5
BT40-SLSA10-180-M67					180	67			20					215		8.5	4.4
BT40-SLSA10-180-M97	1					97	56	-	23.2		-				1.5		6.4
BT40-SLSA10-210-M97	2				210		28	58			50			245	1.9		6.5
BT40-SLSB10-95-M42	1	10	16	3	95	42	26	-	20.4	32	-	12	30	130	1.1	6.3	1.4
BT40-SLSB10-120-M67					120	67			23	36				155	1.2	9.3	2.4
BT40-SLSB10-125-M42					125	42	56		20.4					160	1.3	6.4	1.6
BT40-SLSB10-150-M67					150	67			23	32				185		9.5	3.0

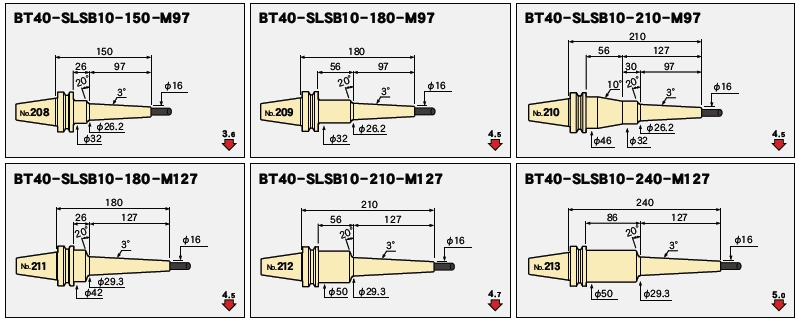

BT40-SLSB10-150-M97						97	26		26.2							13.0	3.6
BT40-SLSB10-155-M42	2				155	42	28	58	20.4	36	50			190	1.8	6.7	1.7
BT40-SLSB10-180-M67					180	67			23					215	1.9	9.8	2.8
BT40-SLSB10-180-M97	1					97	56	-	26.2		-				1.4	13.2	4.1
BT40-SLSB10-180-M127						127	26		29.3	50				190	1.5	17.4	4.5
BT40-SLSB10-210-M97	2				210	97	28	58	26.2	36	50			245	1.9	13.5	4.1
BT40-SLSB10-210-M127	1					127	56	-	29.3	50	-			220	1.8	17.9	4.7

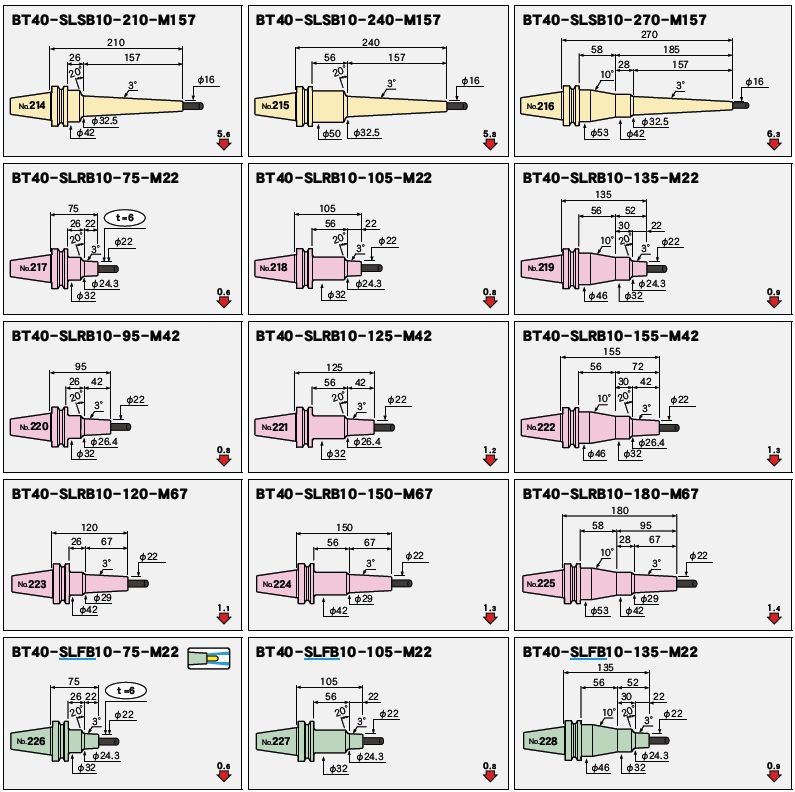

BT40-SLSB10-210-M157						157	26		32.5						1.6	21.1	5.5
BT40-SLSB10-240-M127					240	127	86		29.3					250	2.1	18.5	5.0
BT40-SLSB10-240-M157						157	56		32.5						1.8	21.7	5.8
BT40-SLSB10-270-M157					270		86							305	2.1	22.2	6.2
BT40-SLRB10-75-M22	1	10	22	6	75	22	26	-	24.3	32	-	12	30	110	1.1	3.8	0.6
BT40-SLRB10-95-M42					95	42			26.4					130	1.2	6.3	0.8
BT40-SLRB10-105-M22					105	22	56		24.3					140	1.3	4.0
BT40-SLRB10-120-M67					120	67	26		29	36				155		9.4	1.2
BT40-SLRB10-125-M42					125	42	56		26.4					160	1.4	6.5	1.0
BT40-SLRB10-135-M22	2				135	22	28	58	24.3		50			170	1.8	4.3	0.7
BT40-SLRB10-150-M67	1				150	67	56	-	29					185	1.5	9.6	1.5
BT40-SLRB10-155-M42	2				155	42	28	58	26.4		50			190	1.9	6.8	1.1
BT40-SLRB10-180-M67					180	67			29					215	2.0	9.8	1.6

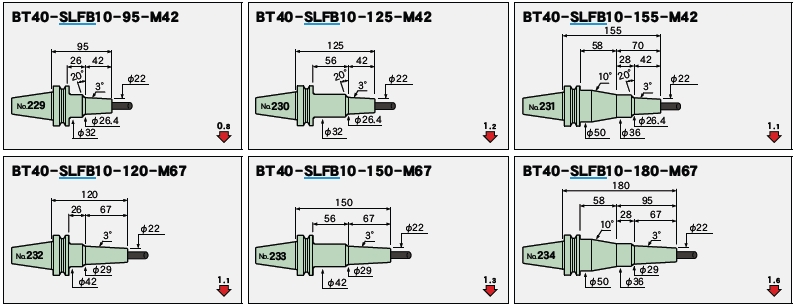

BT40-SLFB10-75-M22	1	10	22	6	75	22	26	-	24.3	32	-	12	30	110	1.1	3.8	0.6
BT40-SLFB10-95-M42					95	42			26.4					130	1.2	6.3	0.8
BT40-SLFB10-105-M22					105	22	56		24.3					140	1.3	4.0
BT40-SLFB10-120-M67					120	67	26		29	36				155		9.4	1.2
BT40-SLFB10-125-M42					125	42	56		26.4					160	1.4	6.5	1.0
BT40-SLFB10-135-M22	2				135	22	30	56	24.3	32	46			170	1.7	4.3	0.9
BT40-SLFB10-150-M67	1				150	67	56	-	29	42	-			185	1.5	9.6	1.3
BT40-SLFB10-155-M42	2				155	42	28	58	26.4	36	50			190	1.9	6.8	1.1
BT40-SLFB10-180-M67					180	67			29					215	2.0	9.8	1.6

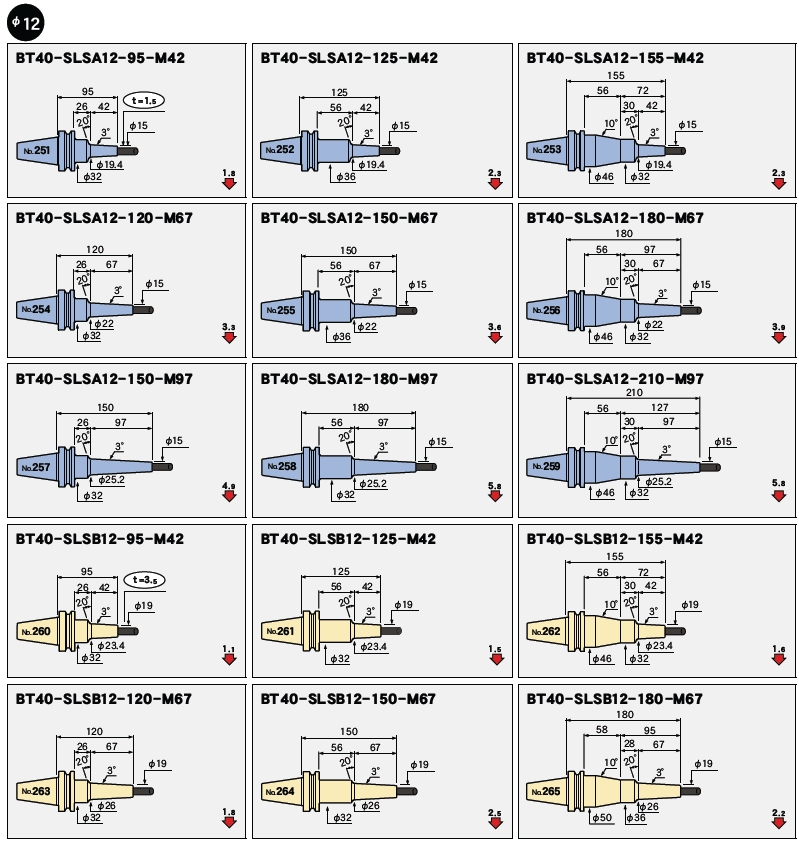

BT40-SLSA12-95-M42	1	12	15	1.5	95	42	26	-	19.4	32	-	13	30	130	1.1	7.1	1.8
BT40-SLSA12-120-M67					120	67			22					155		10.7	3.3
BT40-SLSA12-125-M42					125	42	56		19.4	36				160	1.3	7.3	2.1
BT40-SLSA12-150-M67					150	67			22					185	1.4	10.9	3.6
BT40-SLSA12-150-M97						97	26		25.2						1.2	15.3	4.8
BT40-SLSA12-155-M42	2				155	42	28	58	19.4		50			190	1.8	7.5	2.1
BT40-SLSA12-180-M67					180	67	30	56	22	32	46			215	1.7	11.2	3.9
BT40-SLSA12-180-M97	1					97	56	-	25.2	36	-				1.4	15.5	5.3
BT40-SLSA12-210-M97	2				210		28	58			50			245	1.9	15.8	5.4

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S
BT40-SLSB12-95-M42	1	12	19	3.5	95	42	26	-	23.4	32	-	14	30	130	1.1	8.0	1.1
BT40-SLSB12-120-M67					120	67			26	36				155	1.2	12.2	1.8
BT40-SLSB12-125-M42					125	42	56		23.4					160	1.4	8.2	1.3
BT40-SLSB12-150-M67					150	67			26					185		12.4	2.1

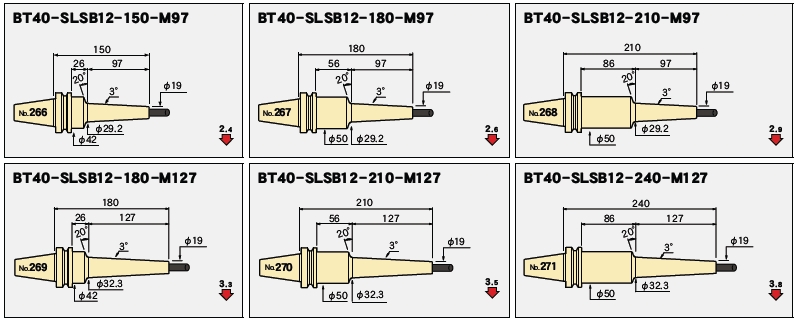

BT40-SLSB12-150-M97						97	26		29.2	50				160		17.9	2.4
BT40-SLSB12-155-M42	2				155	42	28	58	23.4	36	50			190	1.8	8.4	1.4
BT40-SLSB12-180-M67					180	67			26					215	1.9	12.6	2.2
BT40-SLSB12-180-M97	1					97	56	-	29.2	50	-			190	1.7	18.4	2.6
BT40-SLSB12-180-M127						127	26		32.3						1.5	22.9	3.2
BT40-SLSB12-210-M97					210	97	86		29.2					220	2.1	19.0	2.9
BT40-SLSB12-210-M127						127	56		32.3						1.9	23.5	3.5

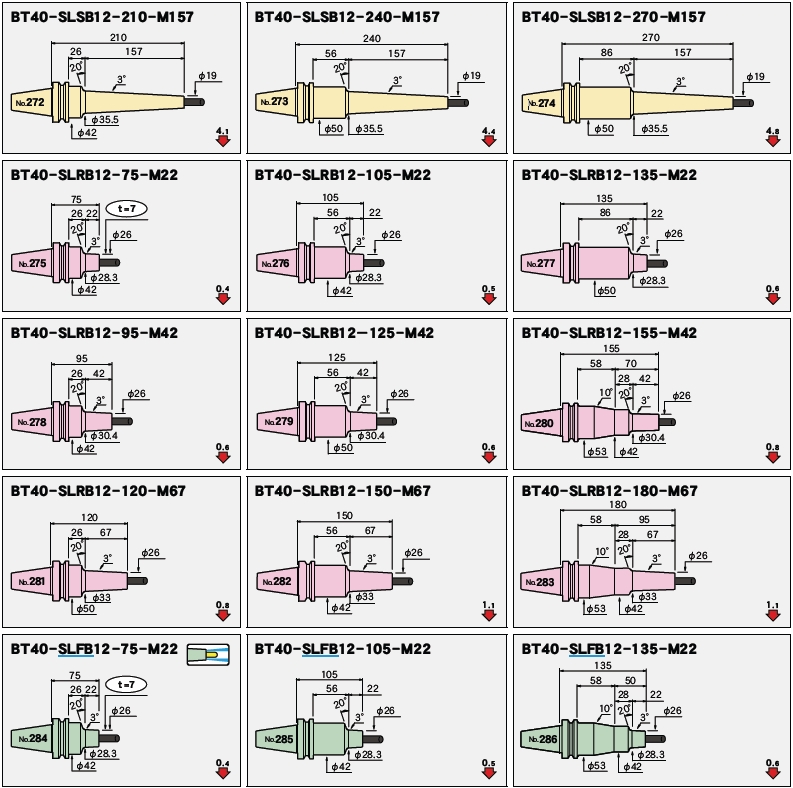

BT40-SLSB12-210-M157						157	26		35.5						1.7	27.9	4.0
BT40-SLSB12-240-M127					240	127	86		32.3					250	2.2	24.0	3.8
BT40-SLSB12-240-M157						157	56		35.5						2.0	28.5	4.4
BT40-SLSB12-270-M157					270		86							280	2.4	29.1	4.8
BT40-SLRB12-75-M22	1	12	26	7	75	22	26	-	28.3	42	-	14	30	85	1.2	6.9	0.4
BT40-SLRB12-95-M42					95	42			30.4	50				105	1.3	8.7	0.6
BT40-SLRB12-105-M22					105	22	56		28.3					115	1.4	7.5	0.5
BT40-SLRB12-120-M67					120	67	26		33					130		12.9	0.8
BT40-SLRB12-125-M42					125	42	56		30.4					135	1.6	9.3	0.6
BT40-SLRB12-135-M22					135	22	86		28.3					145	1.8	8.1
BT40-SLRB12-150-M67					150	67	56		33					160	1.7	13.5	0.9
BT40-SLRB12-155-M42					155	42	86		30.4					165	2.0	9.9	0.8
BT40-SLRB12-180-M67					180	67			33					190	2.1	14.1	1.1

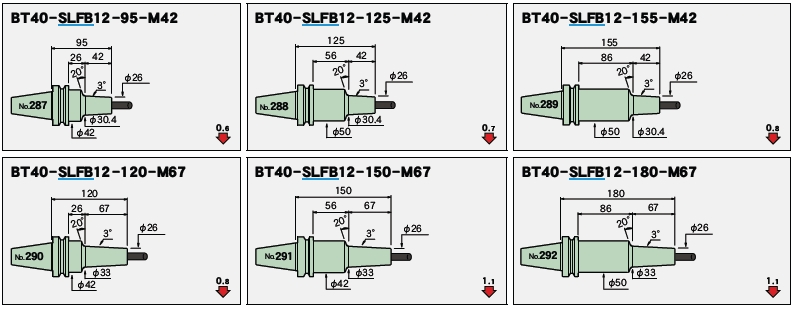

BT40-SLFB12-75-M22	1	12	26	7	75	22	26	-	28.3	50	-	14	30	85	1.1	6.9	0.4
BT40-SLFB12-95-M42					95	42			30.4	42				105	1.2	8.7	0.6
BT40-SLFB12-105-M22					105	22	56		28.3					115	1.4	7.5	0.5
BT40-SLFB12-120-M67					120	67	26		33	50				130		12.9	0.8
BT40-SLFB12-125-M42					125	42	56		30.4					135	1.6	9.3	0.6
BT40-SLFB12-135-M22	2				135	22	28	58	28.3	42	53			145	1.9	8.1
BT40-SLFB12-150-M67	1				150	67	56	-	33	50	-			160	1.7	13.5	0.9
BT40-SLFB12-155-M42					155	42	86		30.4					165	2.0	9.9	0.8
BT40-SLFB12-180-M67					180	67			33					190	2.1	14.1	1.1

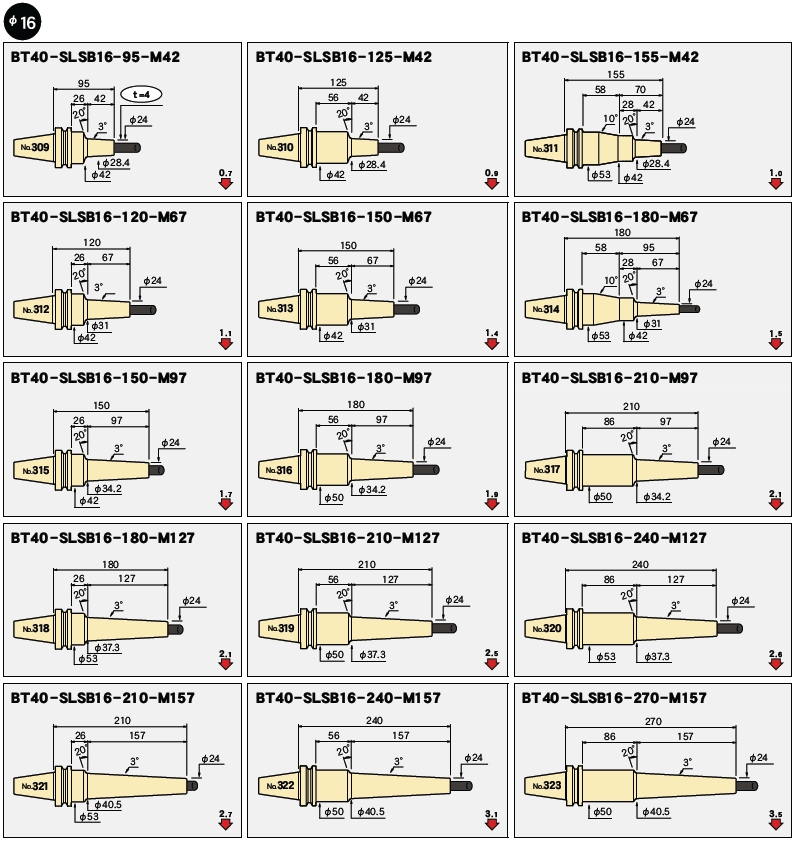

BT40-SLSB16-95-M42	1	16	24	4	95	42	26	-	28.4	42	-	18	32	105	1.2	12.4	0.7
BT40-SLSB16-120-M67					120	67			31					130	1.3	19.3	1.1
BT40-SLSB16-125-M42					125	42	56		28.4	50				135	1.6	13.0	0.8
BT40-SLSB16-150-M67					150	67			31	42				160	1.5	19.8	1.4
BT40-SLSB16-150-M97						97	26		34.2	50						27.6	1.6
BT40-SLSB16-155-M42					155	42	86		28.2					165	1.9	13.5	0.9
BT40-SLSB16-180-M67					180	67			31					190	2.0	20.4	1.5
BT40-SLSB16-180-M97						97	56		34.2						1.8	28.1	1.9
BT40-SLSB16-180-M127						127	26		37.3						1.6	35.8	2.2
BT40-SLSB16-210-M97					210	97	86		34.2					220	2.1	28.7	2.1
BT40-SLSB16-210-M127						127	56		37.3						2.0	36.4	2.5
BT40-SLSB16-210-M157						157	26		40.5						1.9	44.1	2.8
BT40-SLSB16-240-M127					240	127	86		37.3	53				250	2.5	37.0	2.6
BT40-SLSB16-240-M157						157	56		40.5	50					2.2	44.7	3.1
BT40-SLSB16-270-M157					270		86							280	2.5	45.3	3.5

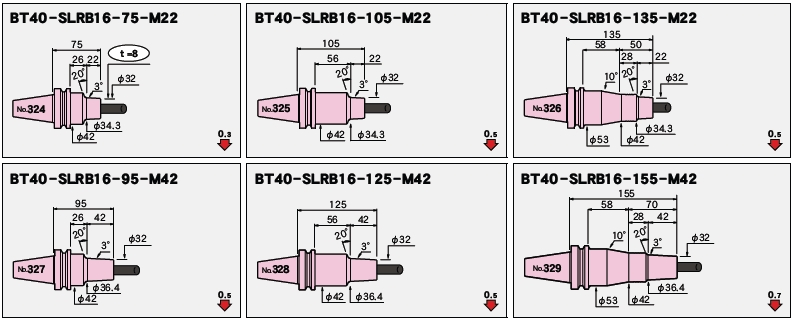

BT40-SLRB16-75-M22	1	16	32	8	75	22	26	-	34.3	50	-	18	32	85	1.2	6.9	0.3
BT40-SLRB16-95-M42					95	42			36.4	42				105	1.3	12.5	0.5
BT40-SLRB16-105-M22					105	22	56		34.3	50				115	1.6	7.5	0.4

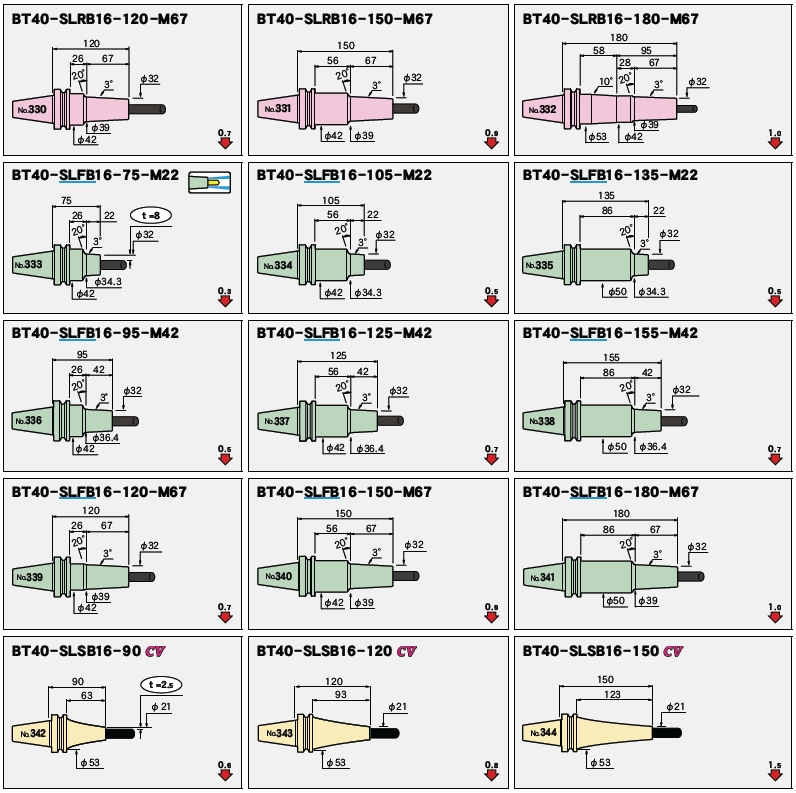

BT40-SLRB16-120-M67					120	67	26		39					130	1.5	19.4	0.6
BT40-SLRB16-125-M42					125	42	56		36.4					135	1.7	13.0	0.5
BT40-SLRB16-135-M22					135	22	86		34.3					145	1.9	8.1
BT40-SLRB16-150-M67					150	67	56		39					160		20.0	0.8
BT40-SLRB16-155-M42					155	42	86		36.4					165	2.0	13.6	0.7
BT40-SLRB16-180-M67					180	67			39					190	2.2	20.5	1.0

型号	图	φD	φC	t	L	M	L1	L2	φC1	φC2	φC3	φD1	H	h	kg	N	S
BT40-SLFB16-75-M22	1	16	32	8	75	22	26	-	34.3	50	-	18	32	85	1.2	6.9	0.3
BT40-SLFB16-95-M42					95	42			36.4					105	1.4	12.5	0.4
BT40-SLFB16-105-M22					105	22	56		34.3					115	1.6	7.5
BT40-SLFB16-120-M67					120	67	26		39					130	1.5	19.4	0.6
BT40-SLFB16-125-M42					125	42	56		36.4					135	1.7	13.0	0.5
BT40-SLFB16-135-M22					135	22	86		34.3					145	1.9	8.1
BT40-SLFB16-150-M67					150	67	56		39					160		20.0	0.8
BT40-SLFB16-155-M42					155	42	86		36.4					165	2.0	13.6	0.7
BT40-SLFB16-180-M67					180	67			39					190	2.2	20.5	1.0

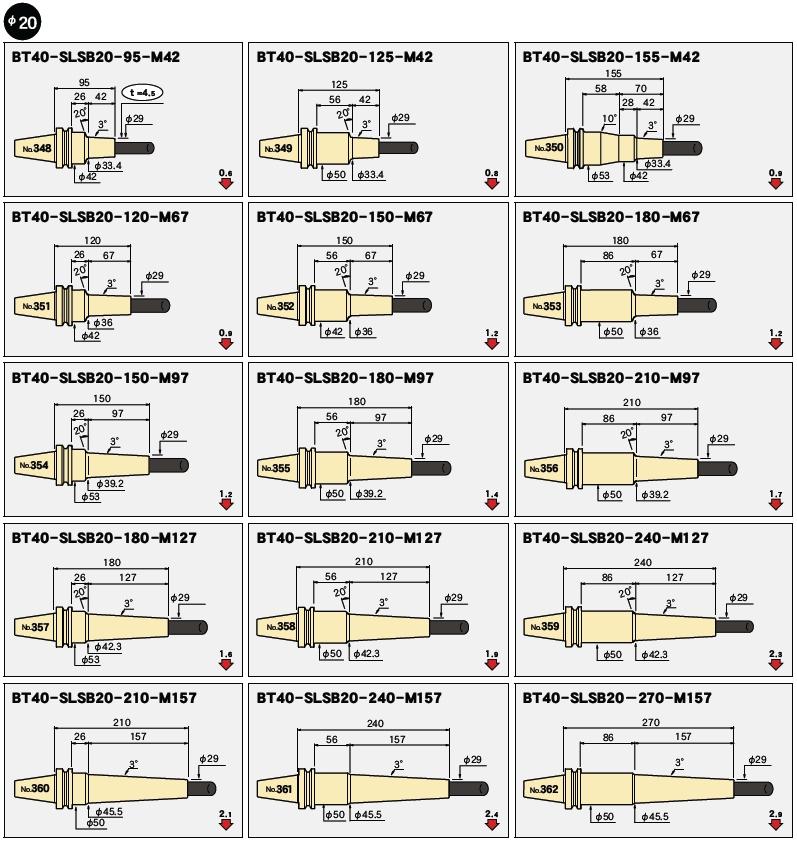

BT40-SLSB20-95-M42	1	20	29	4.5	95	42	26	-	33.4	42	-	22	40	105	1.2	14.2	0.6
BT40-SLSB20-120-M67					120	67			36					130	1.3	24.5	0.9
BT40-SLSB20-125-M42					125	42	56		33.4	50				135	1.6	14.8	0.6
BT40-SLSB20-150-M67					150	67			36					160	1.7	25.0	1.0
BT40-SLSB20-150-M97						97	26		39.2						1.5	36.8	1.2
BT40-SLSB20-155-M42	2				155	42	28	58	33.4	42	53			165	2.0	15.3	0.9
BT40-SLSB20-180-M67	1				180	67	86	-	36	50	-			190		25.6	1.2
BT40-SLSB20-180-M97						97	56		39.2						1.9	37.4	1.4
BT40-SLSB20-180-M127						127	26		42.3						1.8	50.0	1.6
BT40-SLSB20-210-M97					210	97	86		39.2					220	2.2	38.0	1.7
BT40-SLSB20-210-M127						127	56		42.3						2.1	50.5	1.9
BT40-SLSB20-210-M157						157	26		45.5						2.0	62.3	2.1
BT40-SLSB20-240-M127					240	127	86		42.3					250	2.4	51.1	2.3
BT40-SLSB20-240-M157						157	56		45.5							62.9	2.4
BT40-SLSB20-270-M157					270		86							280	2.7	63.5	2.9

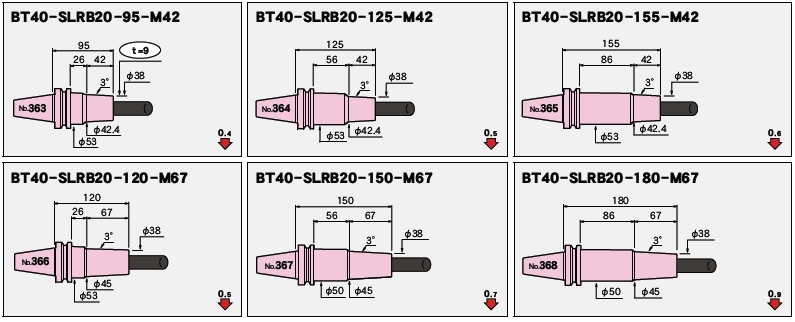

BT40-SLRB20-95-M42	1	20	38	9	95	42	26	-	42.4	50	-	22	40	105	1.4	14.3	0.4
BT40-SLRB20-120-M67					120	67			45					130	1.7	24.6	0.5
BT40-SLRB20-125-M42					125	42	56		42.4					135	1.8	14.9
BT40-SLRB20-150-M67					150	67			45					160	2.0	25.2	0.7
BT40-SLRB20-155-M42					155	42	86		42.4					165	2.1	15.4
BT40-SLRB20-180-M67					180	67			45					190	2.3	25.7	0.9

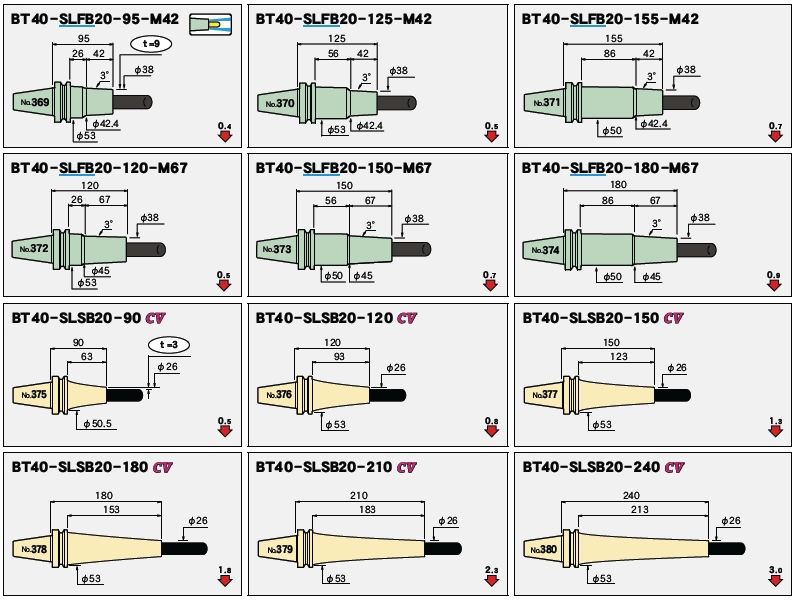

BT40-SLFB20-95-M42	1	20	38	9	95	42	26	-	42.4	50	-	22	40	105	1.4	14.3	0.4
BT40-SLFB20-120-M67					120	67			45					130	1.7	24.6	0.5
BT40-SLFB20-125-M42					125	42	56		42.4					135	1.8	14.9
BT40-SLFB20-150-M67					150	67			45					160	2.0	25.2	0.7
BT40-SLFB20-155-M42					155	42	86		42.4					165	2.1	15.4
BT40-SLFB20-180-M67					180	67			45					190	2.3	25.7	0.9

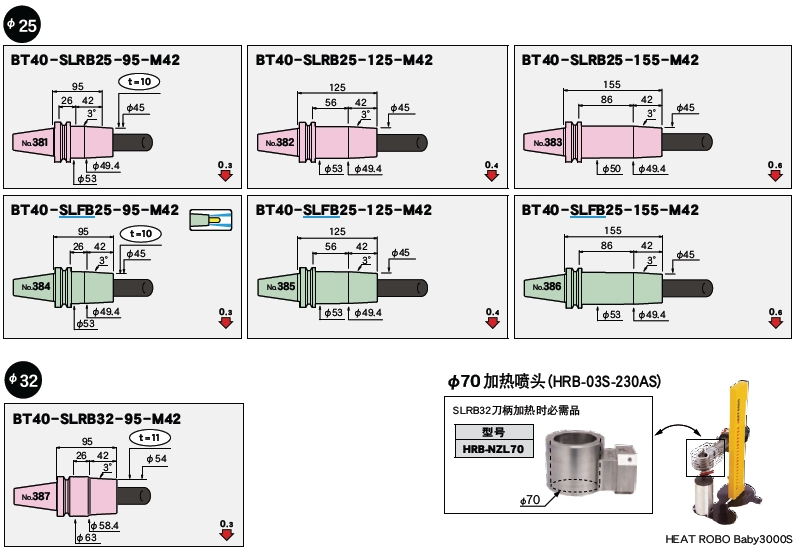

BT40-SLRB25-95-M42	1	25	45	10	95	42	26	-	49.4	50	-	26	45	105	1.5	16.4	0.3
BT40-SLRB25-125-M42					125		56							135	1.9	17.0	0.5
BT40-SLRB25-155-M42					155		86							165	2.2	17.5	0.7
BT40-SLFB25-95-M42	1	25	45	10	95	42	26	-	49.4	50	-	26	45	105	1.5	16.4	0.3
BT40-SLFB25-125-M42					125		56			53				135	1.9	17.0	0.4
BT40-SLFB25-155-M42					155		86							165	2.3	17.5	0.6
BT40-SLRB32-95-M42	1	32	54	11	95	42	26	-	58.4	63	-	50	87	1.8	4.7	5.5	0.3

型号	φD	φC	t	L	M	φC1	φD1	H	ｈ	Kg	N	S
BT40-SLSA4-90CV	4	7	1.5	90	63	53	5	12	125	1.2	3.3	1.8
BT40-SLSA4-120CV				120	93				155	1.3	3.8	2.7
BT40-SLSA4-150CV				150	123				185	1.5	4.4	4.0
BT40-SLSA4-180CV				180	153				215		4.8	6.6
BT40-SLSA4-210CV				210	183				245	1.6	4.9	11.6
BT40-SLSA4-240CV				240	213				275	1.8	5.8	14.0
BT40-SLRA4-120CV		10	3	120	93				155	1.3	3.9	1.9
BT40-SLRA4-150CV				150	123				185	1.4	4.3	2.9
BT40-SLRA4-180CV				180	153				215	1.5	5.1	4.2
BT40-SLRA4-210CV				210	183				245	1.7	5.7	5.7
BT40-SLSA6-90CV	6	9	1.5	90	63	53	7	18	125	1.2	3.3	1.6
BT40-SLSA6-120CV				120	93				155	1.3	3.8	2.3
BT40-SLSA6-150CV				150	123				185	1.5	4.3	3.6
BT40-SLSA6-180CV				180	153				215		4.9	5.7
BT40-SLSA6-210CV				210	183				245	1.7	5.7	7.3
BT40-SLSA6-240CV				240	213				275	1.8	5.9	12.0
BT40-SLRA6-90CV		13	3.5	90	63				125	1.2	3.3	1.2
BT40-SLRA6-120CV				120	93				155	1.3	4.0	1.7
BT40-SLRA6-150CV				150	123				185	1.5	4.8	2.1
BT40-SLRA6-180CV				180	153				215	1.7	5.6	2.8
BT40-SLRA6-210CV				210	183				245		5.9	4.8

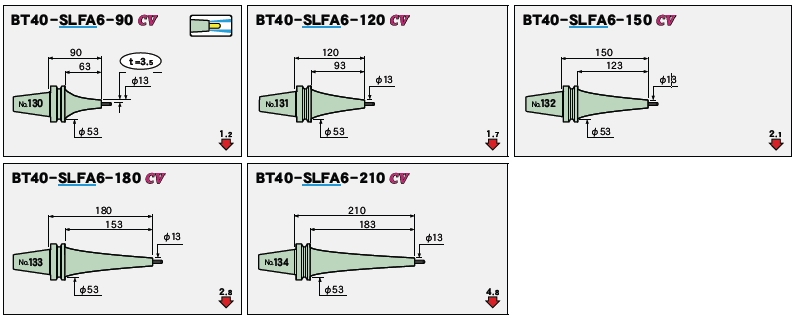

BT40-SLFA6-90CV				90	63				125	1.2	3.3	1.2
BT40-SLFA6-120CV				120	93				155	1.3	4.0	1.7
BT40-SLFA6-150CV				150	123				185	1.5	4.8	2.1
BT40-SLFA6-180CV				180	153				215	1.7	5.6	2.8
BT40-SLFA6-210CV				210	183				245		5.9	4.8
BT40-SLSA8-90CV	8	11	1.5	90	63	53	9	24	125	1.2	3.3	1.4
BT40-SLSA8-120CV				120	93				155	1.3	4.0	2.0
BT40-SLSA8-150CV				150	123				185	1.5	4.8	2.7
BT40-SLSA8-180CV				180	153				215	1.6	4.9	5.0
BT40-SLSA8-210CV				210	183				245	1.7	5.8	6.6
BT40-SLSA8-240CV				240	213				275	1.9	6.7	8.3
BT40-SLRA8-90CV		16	4	90	63				125	1.2	3.8	0.7
BT40-SLRA8-120CV				120	93				155	1.4	4.2	1.2
BT40-SLRA8-150CV				150	123				185	1.6	4.9	1.8
BT40-SLRA8-180CV				180	153				215	1.7	5.7	2.6
BT40-SLRA8-210CV				210	183				245	1.8	6.5	3.5

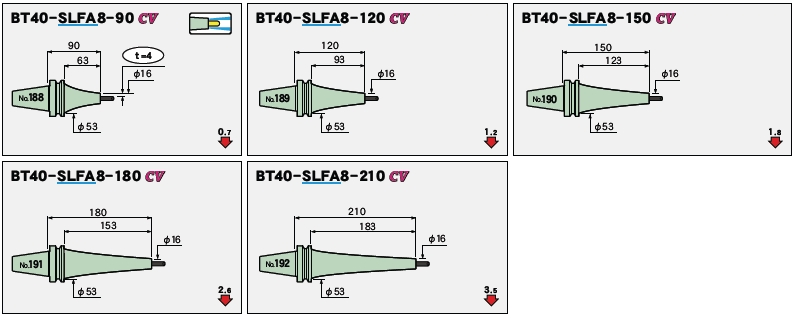

BT40-SLFA8-90CV				90	63				125	1.2	3.8	0.7
BT40-SLFA8-120CV				120	93				155	1.4	4.2	1.2
BT40-SLFA8-150CV				150	123				185	1.6	4.9	1.8
BT40-SLFA8-180CV				180	153				215	1.7	5.7	2.6
BT40-SLFA8-210CV				210	183				245	1.8	6.5	3.5

型号	φD	φC	t	L	M	φC1	φD1	H	ｈ	Kg	N	S
BT40-SLSA10-90CV	10	13	1.5	90	63	53	11	30	125	1.2	3.3	1.8
BT40-SLSA10-120CV				120	93				155	1.5	4.3	1.3
BT40-SLSA10-150CV				150	123				185	1.6	4.9	2.2
BT40-SLSA10-180CV				180	153				215	1.7	5.6	3.4
BT40-SLSA10-210CV				210	183				245		6.0	6.0
BT40-SLSA10-240CV				240	213				275	2.0	7.9	5.8
BT40-SLRA10-90CV		19	4.5	90	63				125	1.3	3.8	0.7
BT40-SLRA10-120CV				120	93				155	1.4	4.6	0.9
BT40-SLRA10-150CV				150	123				185	1.6	5.4	1.4
BT40-SLRA10-180CV				180	153				215	1.8	6.3	2.0
BT40-SLRA10-210CV				210	183				245		7.2	3.1

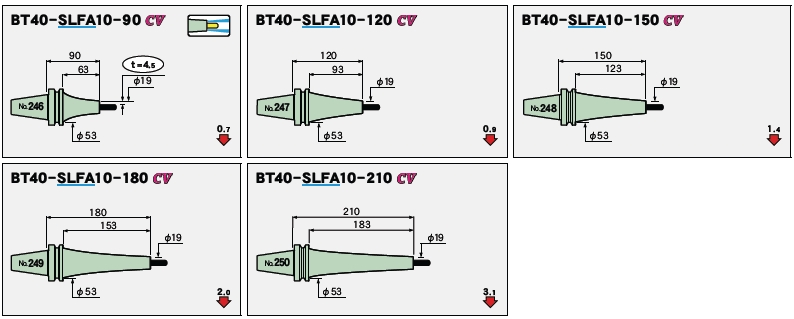

BT40-SLFA10-90CV				90	63				125	1.3	3.8	0.7
BT40-SLFA10-120CV				120	93				155	1.4	4.6	0.9
BT40-SLFA10-150CV				150	123				185	1.6	5.4	1.4
BT40-SLFA10-180CV				180	153				215	1.8	6.3	2.0
BT40-SLFA10-210CV				210	183				245		7.2	3.1

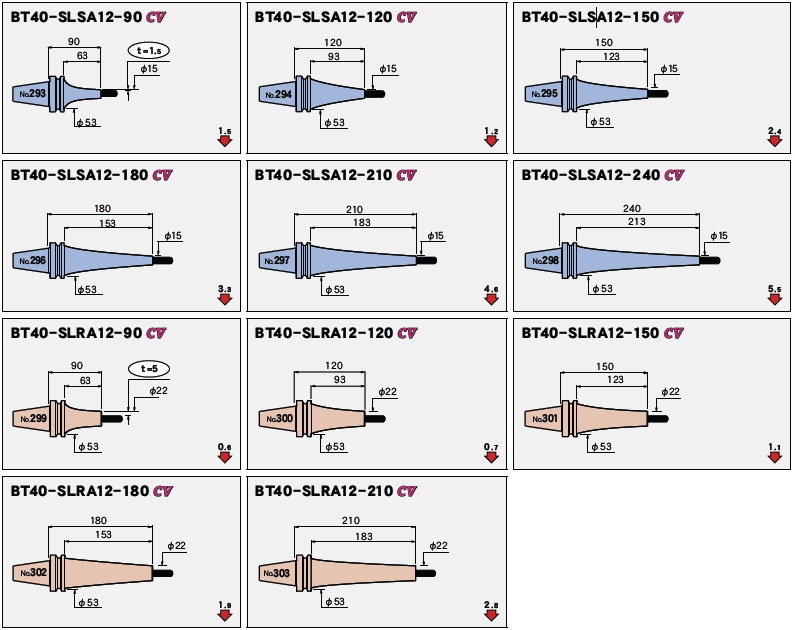

BT40-SLSA12-90CV	12	15	1.5	90	63	53	14	30	125	1.3	3.7	1.5
BT40-SLSA12-120CV				120	93		13		155	1.5	4.6	1.2
BT40-SLSA12-150CV				150	123				185		4.9	2.4
BT40-SLSA12-180CV				180	153				215	1.7	5.7	3.3
BT40-SLSA12-210CV				210	183				245	1.9	6.6	4.6
BT40-SLSA12-240CV				240	213				275	2.0	8.0	5.5
BT40-SLRA12-90CV		22	5	90	63		14		125	1.3	3.9	0.6
BT40-SLRA12-120CV				120	93				155	1.6	5.1	0.7
BT40-SLRA12-150CV				150	123		13		185	1.7	6.0	1.1
BT40-SLRA12-180CV				180	153				215		6.9	1.9
BT40-SLRA12-210CV				210	183				245	1.8	7.7	2.8

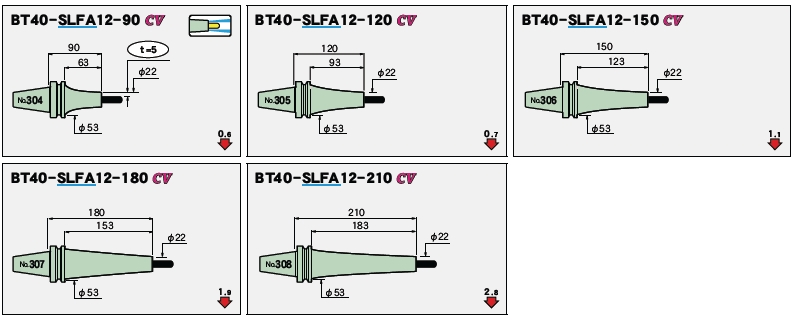

BT40-SLFA12-90CV				90	63		14		125	1.3	3.9	0.6
BT40-SLFA12-120CV				120	93				155	1.6	5.1	0.7
BT40-SLFA12-150CV				150	123		13		185	1.7	6.0	1.1
BT40-SLFA12-180CV				180	153				215		6.9	1.9
BT40-SLFA12-210CV				210	183				245	1.8	7.7	2.8
BT40-SLSB16-90CV	16	21	2.5	90	63	53	17	32	100	1.3	4.2	0.6
BT40-SLSB16-120CV				120	93				130	1.5	5.5	0.8
BT40-SLSB16-150CV				150	123				160	1.6	6.2	1.5

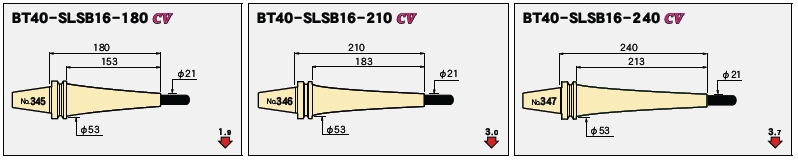

BT40-SLSB16-180CV				180	153				190	1.9	7.5	1.9
BT40-SLSB16-210CV				210	183				220	2.0	8.2	3.0
BT40-SLSB16-240CV				240	213				250	2.2	9.5	3.7
BT40-SLSB20-90CV	20	26	3	90	63	50.5	21	40	100	1.3	4.4	0.5
BT40-SLSB20-120CV				120	93	53			130	1.5	5.8	0.8
BT40-SLSB20-150CV				150	123				160	1.6	6.7	1.3
BT40-SLSB20-180CV				180	153				190	1.9	8.0	1.8
BT40-SLSB20-210CV				210	183				220	2.1	9.4	2.3
BT40-SLSB20-240CV				240	213				250	2.4	10.7	3.0
