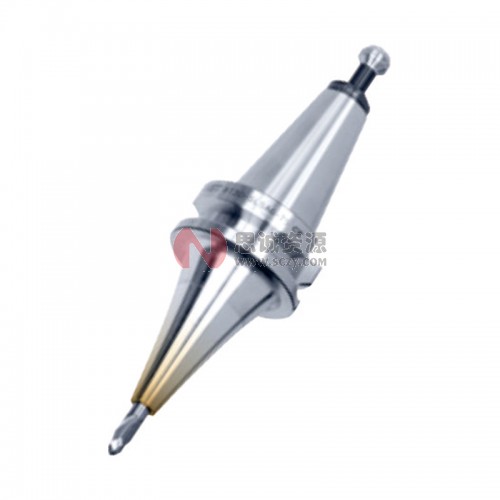

自营日本MST热装刀柄BT30一体型
产品亮点：BT30-日本MST一体式热缩刀柄特殊不锈钢材质
- 选配推荐
- 最新发布
产品详情
BT30-日本MST一体式热缩刀柄特殊不锈钢材质
| 型号 | φD | φC | t | L | M | L1 | φC1 | φC2 | φD1 | H | h | kg | N | S |
| BT30-SLSA3-60-M22 | 3 | 6 | 1.5 | 60 | 22 | 16 | 8.3 | 20 | 4 | 9 | 80 | 0.4 | 0.8 | 4.7 |
| BT30-SLSA3-75-M22 | 75 | 31 | 25 | 99 | 4.6 | |||||||||
| BT30-SLSA3-80-M42 | 80 | 42 | 16 | 10.4 | 20 | 100 | 9.4 | |||||||
| BT30-SLSA3-95-M42 | 95 | 31 | 25 | 119 | 9.2 | |||||||||
| BT30-SLSA3-120-M67 | 120 | 67 | 13 | 144 | 0.5 | 1.6 | 14.9 | |||||||
| BT30-SLRA3-75-M22 | 7.5 | 2.25 | 75 | 22 | 9.8 | 99 | 2.8 | |||||||
| BT30-SLSA3.175-60-M22 | 3.175 | 6.175 | 1.5 | 60 | 22 | 16 | 8.5 | 20 | 4 | 9 | 80 | 0.4 | 0.8 | 4.5 |
| BT30-SLSA3.175-75-M22 | 75 | 31 | 25 | 99 | 4.4 | |||||||||
| BT30-SLSA3.175-95-M42 | 95 | 42 | 10.6 | 119 | 8.8 | |||||||||
| BT30-SLSA4-60-M22 | 4 | 7 | 1.5 | 60 | 22 | 16 | 9.3 | 20 | 5 | 12 | 80 | 0.4 | 0.8 | 3.7 |
| BT30-SLSA4-75-M22 | 75 | 31 | 25 | 99 | 3.6 | |||||||||
| BT30-SLSA4-95-M42 | 95 | 42 | 11.4 | 119 | 7.3 | |||||||||
| BT30-SLSA4-120-M67 | 120 | 67 | 14 | 144 | 0.5 | 1.6 | 11.9 | |||||||
| BT30-SLRA4-75-M22 | 10 | 3 | 75 | 22 | 12.3 | 99 | 1.8 | |||||||
| BT30-SLSA6-60-M22 | 6 | 9 | 1.5 | 60 | 22 | 16 | 11.3 | 20 | 7 | 18 | 80 | 0.4 | 0.9 | 2.4 |
| BT30-SLSA6-75-M22 | 75 | 31 | 25 | 99 | ||||||||||
| BT30-SLSA6-95-M42 | 95 | 42 | 13.4 | 119 | 4.9 | |||||||||
| BT30-SLSA6-120-M67 | 120 | 67 | 16 | 144 | 0.5 | 1.7 | 8.3 | |||||||
| BT30-SLRA6-75-M22 | 12 | 3 | 75 | 22 | 14.3 | 99 | 0.4 | 0.9 | 1.4 | |||||
| BT30-SLRA8-75-M22 | 8 | 14 | 3 | 75 | 22 | 31 | 16.3 | 25 | 9 | 24 | 99 | 0.4 | 0.9 | 1.2 |
| BT30-SLRA10-75-M22 | 10 | 16 | 3 | 75 | 22 | 31 | 18.3 | 25 | 11 | 30 | 99 | 0.4 | 1.0 | 1.1 |
| BT30-SLRA12-75-M22 | 12 | 20 | 4 | 75 | 22 | 31 | 22.3 | 25 | 13 | 30 | 99 | 0.5 | 1.2 | 1.0 |
| BT30-SLRA16-60-M22 | 16 | 26 | 5 | 60 | 22 | 16 | 28.3 | 34 | 16.6 | 32 | 60 | 0.5 | 1.6 | 0.5 |
| BT30-SLRA20-65-M22 | 20 | 32 | 6 | 65 | 22 | 21 | 34.3 | 40 | 20.6 | 38 | 60 | 0.6 | 2.1 | 0.4 |
| 型号 | φD | φC | t | L | M | φC1 | φD1 | H | ｈ | Kg | N | S |
| BT30-SLSA4-75CV | 4 | 7 | 1.5 | 75 | 53 | 34 | 5 | 12 | 99 | 0.5 | 1.0 | 1.8 |
| BT30-SLSA4-90CV | 90 | 68 | 114 | 1.1 | 2.8 | |||||||
| BT30-SLSA4-120CV | 120 | 98 | 144 | 1.2 | 6.6 | |||||||
| BT30-SLRA4-90CV | 10 | 3 | 90 | 68 | 114 | 1.0 | 2.0 | |||||
| BT30-SLRA4-120CV | 120 | 98 | 144 | 1.1 | 2.9 | |||||||
| BT30-SLSA6-75CV | 6 | 9 | 1.5 | 75 | 53 | 34 | 7 | 18 | 99 | 0.5 | 1.3 | 1.5 |
| BT30-SLSA6-90CV | 90 | 68 | 114 | 1.0 | 2.4 | |||||||
| BT30-SLSA6-120CV | 120 | 98 | 144 | 1.2 | 5.6 | |||||||
| BT30-SLRA6-90CV | 13 | 3.5 | 90 | 68 | 114 | 1.1 | 1.6 | |||||
| BT30-SLRA6-120CV | 120 | 98 | 144 | 1.2 | 2.5 | |||||||
| BT30-SLSA8-75CV | 8 | 11 | 1.5 | 75 | 53 | 34 | 9 | 24 | 99 | 0.5 | 1.1 | 1.3 |
| BT30-SLSA8-90CV | 90 | 68 | 114 | 0.6 | 1.6 | 2.2 | ||||||
| BT30-SLRA8-90CV | 16 | 4 | 90 | 68 | 114 | 0.5 | 1.2 | 1.1 | ||||
| BT30-SLSA10-75CV | 10 | 13 | 1.5 | 75 | 53 | 34 | 11 | 30 | 99 | 0.5 | 1.6 | 1.2 |
| BT30-SLSA10-90CV | 90 | 68 | 114 | 1.4 | 2.0 | |||||||
| BT30-SLRA10-90CV | 19 | 4.5 | 0.6 | 1.5 | 1.1 |
