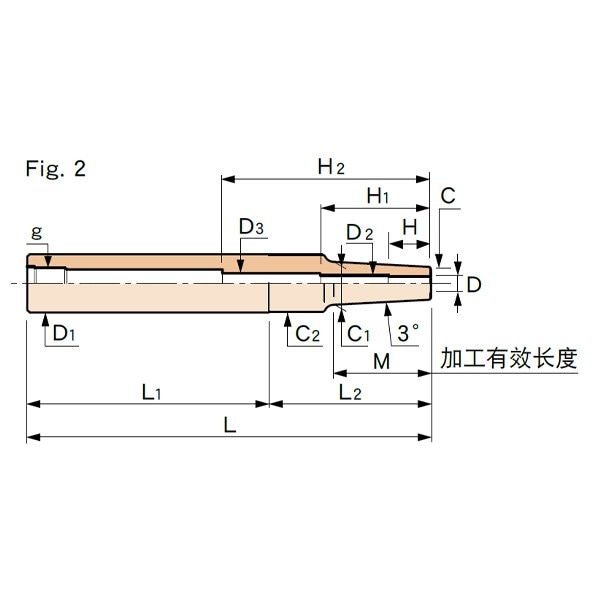

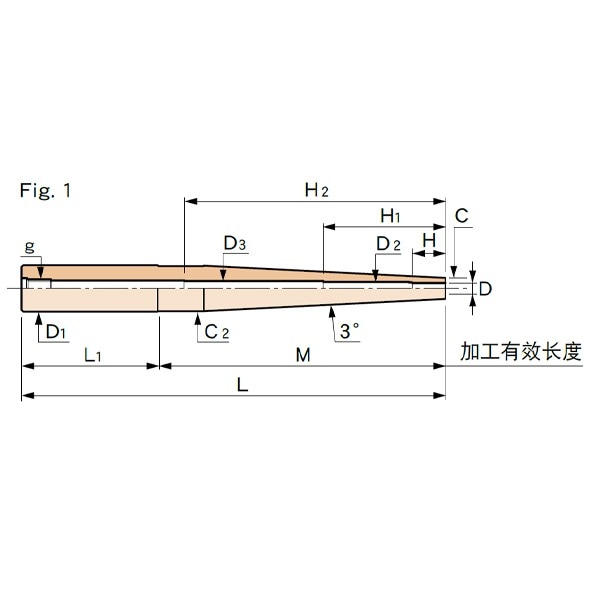

型号 | Fig. | φD | φC | t(壁厚) | L | M | φD1 | H | L1 | L2 | φC1 | φC2 | g | h | kg | φD2 | φD3 | H1 | H2 |
ST25-SLSA3-245-M97 | 2 | 3 | 6 | 1.5 | 245 | 97 | 25 | 9 | 120 | 125 | 16.2 | 24.5 | M10 | 217 | 0.6 | 4 | 5 | 49.7 | 105.3 |
ST25-SLRA3-245-M97 | 2 | 3 | 7.5 | 2.25 | 245 | 97 | 25 | 9 | 120 | 125 | 17.7 | 24.5 | M10 | 217 | 0.6 | 4 | 5 | 47.5 | 99.5 |
ST25-SLSA3-315-M195 | 1 | 3 | 6 | 1.5 | 315 | 195 | 25 | 9 | 120 | − | − | 24.5 | M10 | 287 | 0.6 | 4 | 5 | 49.7 | 112.1 |
ST25-SLRA3-315-M67 | 2 | 3 | 7.5 | 2.25 | 315 | 67 | 25 | 9 | 220 | 95 | 14.5 | 24.5 | M10 | 287 | 0.9 | 4 | 5 | 49.7 | 75.3 |
