自营日本弥满和YAMAWA管用丝攻系列 PS标准型平行管用丝攻
产品亮点：PS标准型平行管用丝攻
- 选配推荐
- 最新发布
产品详情
PS标准型平行管用丝攻
PS
标准型平行管用丝攻
样式特长
被削材和推荐的攻牙速度
品区：1G

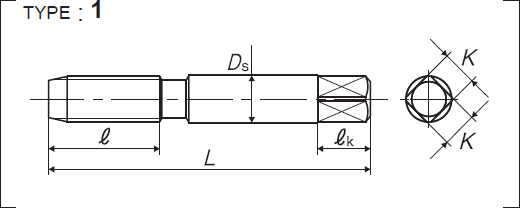

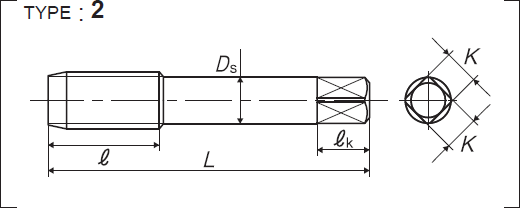

| 全长 | 螺纹部长 | 基准径的位置 | 柄径 | 四角部宽 | 四角部长 |
| L | e | eg | Ds | K | ek |
| 尺寸 | 等级 | 产品编号 | 吃入部 | 大径的基准值（mm） | L (mm) |
e (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 管用 | ||||||||||||
| PS 1/16-28 | Ⅱ | TH2P01K-8 | 3.5P | 7.723 | 55 | 19 | 8 | 6 | 9 | 4 | 1 | △ |
| PS 1/8-28 | Ⅱ | TH2P02K | 3.5P | 9.728 | 55 | 19 | 8 | 6 | 9 | 4 | 2 | ◎ |
| TH2P02K1 | 1.5P | △ | ||||||||||
| PS 1/4-19 | Ⅱ | TH2P04- | 3.5P | 13.157 | 62 | 28 | 11 | 9 | 12 | 4 | 2 | ◎ |
| TH2P04-1 | 1.5P | △ | ||||||||||
| PS 3/8-19 | Ⅱ | TH2P06- | 3.5P | 16.662 | 65 | 28 | 14 | 11 | 14 | 4 | 2 | ◎ |
| TH2P06-1 | 1.5P | △ | ||||||||||
| PS 1/2-14 | Ⅱ | TH2P08Q | 3.5P | 20.955 | 80 | 35 | 18 | 14 | 17 | 4 | 2 | ◎ |
| TH2P08Q1 | 1.5P | △ | ||||||||||
| PS 5/8-14 | Ⅱ | TH2P10Q | 3.5P | 22.911 | 82 | 35 | 19 | 15 | 18 | 4 | 2 | △ |
| PS 3/4-14 | Ⅱ | TH2P12Q | 3.5P | 26.441 | 85 | 35 | 23 | 17 | 20 | 4 | 2 | ◎ |
| TH2P12Q1 | 1.5P | △ | ||||||||||
| PS 7/8-14 | Ⅱ | TH2P14Q | 3.5P | 30.201 | 90 | 40 | 24 | 19 | 22 | 4 | 2 | △ |
| PS 1 -11 | Ⅱ | TH2P16U | 3.5P | 33.249 | 95 | 45 | 26 | 21 | 24 | 5 | 2 | ◎ |
| TH2P16U1 | 1.5P | △ | ||||||||||
| PS 1 1/4-11 | Ⅱ | TH2P20U | 3.5P | 41.910 | 105 | 45 | 32 | 26 | 30 | 5 | 2 | ○ |
| TH2P20U1 | 1.5P | △ | ||||||||||
| PS 1 1/2-11 | Ⅱ | TH2P24U | 3.5P | 47.803 | 110 | 45 | 38 | 29 | 32 | 6 | 2 | ○ |
| TH2P24U1 | 1.5P | △ | ||||||||||
| PS 2 -11 | Ⅱ | TH2P32U | 3.5P | 59.614 | 120 | 50 | 46 | 35 | 38 | 6 | 2 | ○ |
| PS 2 1/2-11 | Ⅱ | TH2P40U | 3.5P | 75.184 | 145 | 65 | 55 | 41 | 44 | 8 | 2 | △ |
| PS 3 -11 | Ⅱ | TH2P48U | 3.5P | 87.884 | 155 | 65 | 65 | 50 | 52 | 8 | 2 | △ |
| PS 4 -11 | Ⅱ | TH2P64U | 3.5P | ##### | 170 | 70 | 75 | 58 | 62 | 10 | 2 | △ |
