自营日本弥满和YAMAWA先端丝攻系列（通孔用）S-PO深孔加工用先端丝攻
产品亮点：S-PO深孔加工用先端丝攻
- 选配推荐
- 最新发布
产品详情
S-PO深孔加工用先端丝攻
S-PO
深孔加工用先端丝攻
样式特长
被削材和推荐的攻牙速度
■因丝攻螺纹部长度短，摩擦抗力小，切削油的供给变佳，加工大径的2.5倍（2.5D）以上深度的内螺纹，效果优异的先端丝攻。
品区：1E

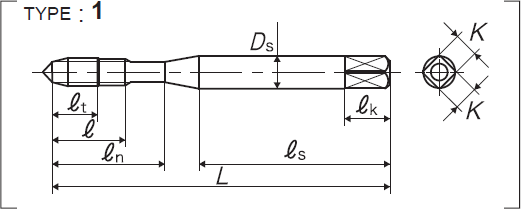

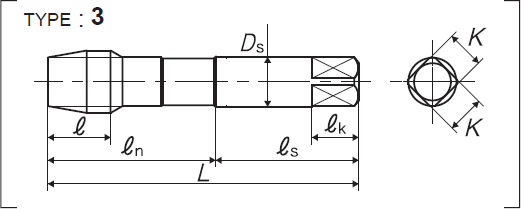

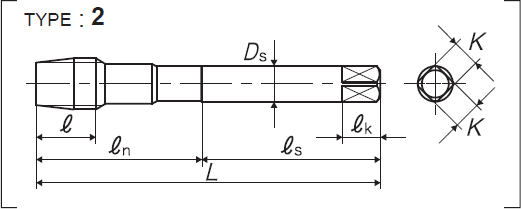

| 全长 | 螺纹部长 | 颈下长 | 柄部长 | 柄径 | 四角部宽 | 四角部长 |
| L | e | en | es | Ds | k | ek |
| 尺寸 | 等级 | 产品编号 | 吃入部 | L (mm) |
et (mm) |
e (mm) |
en (mm) |
es (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 公制螺纹专用 | ||||||||||||||
| M2×0.4 | P2 | PSMQ2.0E | 5P | 42 | 4 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 | ○ |
| M2.3×0.4 | P2 | PSMQ2.3E | 5P | 42 | 4 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 | △ |
| M2.5×0.45 | P2 | PSMQ2.5F | 5P | 46 | 4 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 | △ |
| M2.6×0.45 | P2 | PSMQ2.6F | 5P | 46 | 4 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 | △ |
| M3×0.5 | P2 | PSMQ3.0G | 5P | 46 | 5 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 1 | ○ |
| M3.5×0.6 | P2 | PSMQ3.5H | 5P | 52 | 7 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 1 | △ |
| M4×0.7 | P2 | PSMQ4.0I | 5P | 52 | 7 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 1 | ○ |
| M5×0.8 | P2 | PSMQ5.0K | 5P | 60 | 9 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 | ○ |
| M6×1 | P2 | PSMQ6.0M | 5P | 62 | 11 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 | ○ |
| M8×1.25 | P3 | PSMR8.0N | 5P | 70 | - | 12 | - | 36 | 6.2 | 5 | 8 | 3 | 2 | ○ |
| M8×1 | P3 | PSMR8.0M | 5P | 70 | - | 12 | - | 36 | 6.2 | 5 | 8 | 3 | 2 | △ |
| M10×1.5 | P3 | PSMR010O | 5P | 75 | - | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | ○ |
| M10×1.25 | P3 | PSMR010N | 5P | 75 | - | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | △ |
| M10×1 | P3 | PSMR010M | 5P | 75 | - | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | ○ |
| M12×1.75 | P4 | PSMS012P | 5P | 82 | - | 15 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | ○ |
| M12×1.5 | P3 | PSMR012O | 5P | 82 | - | 15 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| M12×1.25 | P4 | PSMS012N | 5P | 82 | - | 15 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | ○ |
| M12×1 | P3 | PSMR012M | 5P | 82 | - | 15 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| M14×2 | P4 | PSMS014Q | 5P | 88 | - | 18 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | ○ |
| M14×1.5 | P3 | PSMR014O | 5P | 88 | - | 14 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | ○ |
| M16×2 | P4 | PSMS016Q | 5P | 95 | - | 18 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | ○ |
| M16×1.5 | P3 | PSMR016O | 5P | 95 | - | 14 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | △ |
| M18×2.5 | P4 | PSMS018R | 5P | 100 | - | 20 | - | 51 | 14 | 11 | 14 | 3 | 2 | △ |
| M18×1.5 | P4 | PSMS018O | 5P | 100 | - | 14 | - | 51 | 14 | 11 | 14 | 3 | 2 | △ |
| M20×2.5 | P4 | PSMS020R | 5P | 105 | - | 20 | - | 50 | 15 | 12 | 15 | 3 | 3 | ○ |
| M20×1.5 | P4 | PSMS020O | 5P | 105 | - | 14 | - | 50 | 15 | 12 | 15 | 3 | 3 | △ |
| M22×2.5 | P4 | PSMS022R | 5P | 115 | - | 20 | - | 55 | 17 | 13 | 16 | 3 | 3 | △ |
| M22×1.5 | P4 | PSMS022O | 5P | 115 | - | 14 | - | 55 | 17 | 13 | 16 | 3 | 3 | △ |
| M24×3 | P4 | PSMS024S | 5P | 120 | - | 25 | - | 55 | 19 | 15 | 18 | 3 | 3 | △ |
| M24×1.5 | P4 | PSMS024O | 5P | 120 | - | 18 | - | 55 | 19 | 15 | 18 | 3 | 3 | △ |
| M27×3 | P4 | PSMS027S | 5P | 130 | - | 25 | - | 60 | 20 | 15 | 18 | 4 | 3 | △ |
| M27×1.5 | P4 | PSMS027O | 5P | 130 | - | 20 | - | 60 | 20 | 15 | 18 | 4 | 3 | △ |
| M30×3.5 | P5 | PSMT030T | 5P | 135 | - | 30 | - | 62 | 23 | 17 | 20 | 4 | 3 | △ |
| M30×1.5 | P4 | PSMS030O | 5P | 135 | - | 20 | - | 62 | 23 | 17 | 20 | 4 | 3 | △ |
| M33×3.5 | P5 | PSMT033T | 5P | 145 | - | 30 | - | 67 | 25 | 19 | 22 | 4 | 3 | △ |
| M36×4 | P5 | PSMT036U | 5P | 155 | - | 40 | - | 71 | 28 | 21 | 24 | 4 | 3 | △ |
| M39×4 | P5 | PSMT039U | 5P | 165 | - | 40 | - | 76 | 30 | 23 | 26 | 4 | 3 | △ |
| M42×4.5 | P5 | PSMT042V | 5P | 175 | - | 40 | - | 81 | 32 | 26 | 30 | 4 | 3 | △ |
