产品详情

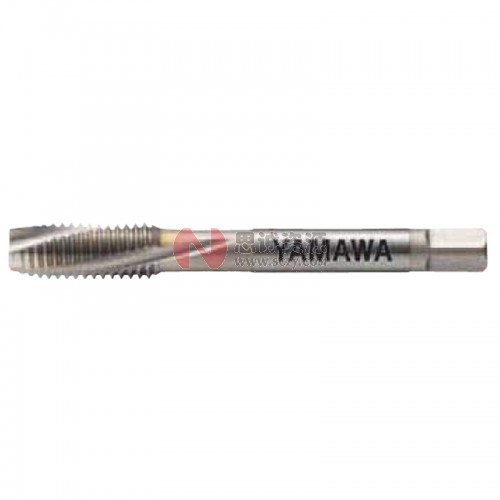

日本弥满和YAMAWA先端丝攻系列（通孔用）PO OX标准型先端丝攻
PO OX
标准型先端丝攻（氧化处理品）
样式特长
被削材和推荐的攻牙速度
带*为加大精度
品区：1E

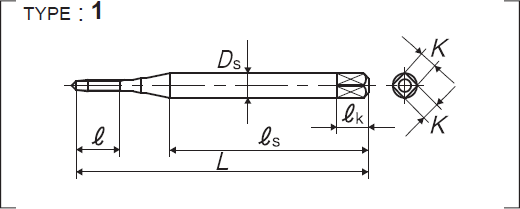

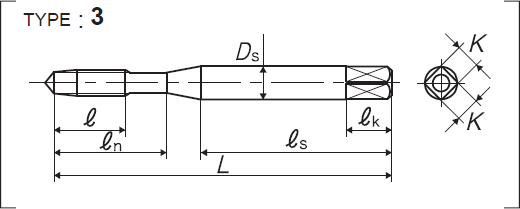

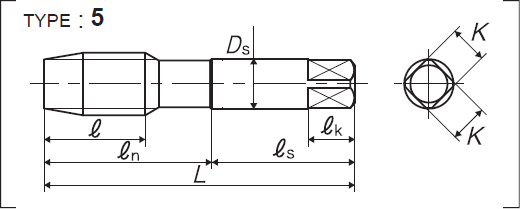

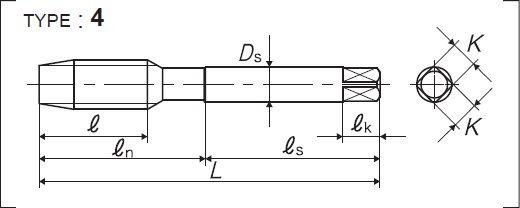

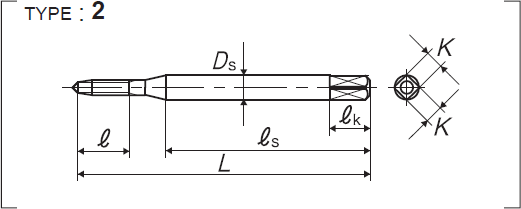

| 全长 | 螺纹部长 | 颈下长 | 柄部长 | 柄径 | 四角部宽 | 四角部长 |
| L | e | en | es | Ds | k | ek |
| 尺寸 | 等级 | 产品编号 | 吃入部 | L (mm) |
e (mm) |
en (mm) |
es (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 公制螺纹专用 | |||||||||||||
| M1.4×0.3 | P1 | POP1.4CX | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 1 | △ |
| *P2 | POQ1.4CX | ||||||||||||
| M1.6×0.35 | P2 | POQ1.6DX | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 2 | △ |
| M1.7×0.35 | P2 | POQ1.7DX | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 2 | △ |
| M2×0.4 | P2 | POQ2.0EX | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 3 | ○ |
| *P3 | POR2.0EX | △ | |||||||||||
| M2.3×0.4 | P2 | POQ2.3EX | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 3 | △ |
| M2.5×0.45 | P2 | POQ2.5FX | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 3 | △ |
| M2.6×0.45 | P2 | POQ2.6FX | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 3 | △ |
| *P3 | POR2.6FX | ||||||||||||
| M3×0.5 | P2 | POQ3.0GX | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 3 | ◎ |
| *P3 | POR3.0GX | △ | |||||||||||
| 3M0.6 | P2 | POQ3.0HX | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 3 | △ |
| M3.5×0.6 | P2 | POQ3.5HX | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 3 | △ |
| M4×0.7 | P2 | POQ4.0IX | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 3 | ◎ |
| *P3 | POR4.0IX | △ | |||||||||||
| 4M0.75 | P2 | POQ4.0JX | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 3 | △ |
| M5×0.8 | P2 | POQ5.0KX | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 3 | ◎ |
| *P3 | POR5.0KX | △ | |||||||||||
| 5M0.9 | P2 | POQ5.0LX | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 3 | △ |
| M6×1 | P2 | POQ6.0MX | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 3 | ◎ |
| *P3 | POR6.0MX | △ | |||||||||||
| M8×1.25 | P3 | POR8.0NX | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 4 | ◎ |
| *P4 | POS8.0NX | △ | |||||||||||
| M8×1 | P3 | POR8.0MX | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 4 | △ |
| M10×1.5 | P3 | POR010OX | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 4 | ○ |
| *P4 | POS010OX | △ | |||||||||||
| M10×1.25 | P3 | POR010NX | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 4 | △ |
| M10×1 | P3 | POR010MX | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 4 | △ |
| *P4 | POS010MX | ||||||||||||
| M12×1.75 | P4 | POS012PX | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 4 | ○ |
| M12×1.5 | P3 | POR012OX | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 4 | △ |
| M12×1.25 | P4 | POS012NX | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 4 | △ |
| M14×2 | P4 | POS014QX | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 4 | △ |
| M14×1.5 | P3 | POR014OX | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 4 | △ |
| M14×1 | P3 | POR014MX | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 4 | △ |
| M16×2 | P4 | POS016QX | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 4 | ○ |
| M16×1.5 | P3 | POR016OX | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 4 | △ |
| M18×2.5 | P4 | POS018RX | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 4 | △ |
| M18×1.5 | P4 | POS018OX | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 4 | △ |
| M20×2.5 | P4 | POS020RX | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 5 | ○ |
| M20×1.5 | P4 | POS020OX | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 5 | △ |
| M22×2.5 | P4 | POS022RX | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 5 | △ |
| M22×1.5 | P4 | POS022OX | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 5 | △ |
| M24×3 | P4 | POS024SX | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 5 | △ |
| M27×3 | P4 | POS027SX | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 5 | △ |
| M30×3.5 | P5 | POT030TX | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 5 | △ |
| M33×3.5 | P5 | POMT033TX | 5P | 145 | 46 | - | 67 | 25 | 19 | 22 | 4 | 5 | △ |
| M36×4 | P5 | POMT036UX | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 5 | △ |
| M42×4.5 | P5 | POMT042VX | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 5 | △ |
