自营BIG大昭和 HSK-A 同步攻丝刀柄STC型组合
产品亮点：同步攻丝刀柄STC 型是加工中心用内置同步攻丝功能刀柄，可与BIG+KAISER CK 基础柄组合自由配置刀具，使用T型内冷夹套时还能搭配内冷丝锥，适配多种攻丝范围需求。有不同型号可选，对应不同的攻丝范围、尺寸参数及组合内容，带有内冷孔可使用中心冷，能满足多样的攻丝加工场景。
- 选配推荐
- 最新发布
产品详情

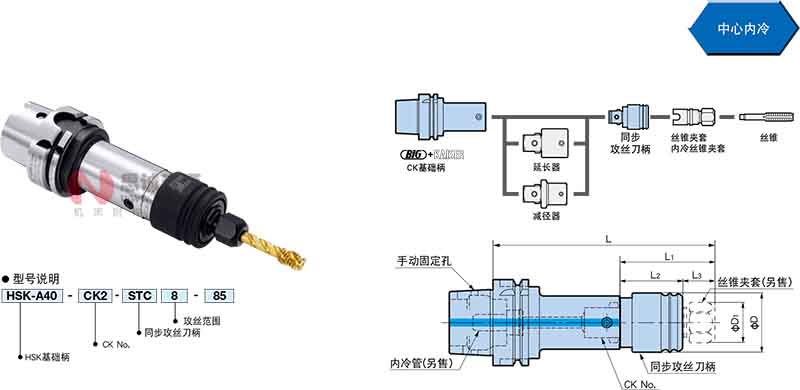

同步攻丝刀柄（STC）型组合，内置同步攻丝功能的加工中心用攻丝刀柄。
与BIG+KAISER CK基本柄组合，自由配置刀具。
使用TC型内冷夹套时，可使用内冷丝锥。
| 型号 | 攻丝范围 | CK No. | φD | φD1 | L | L1 | L2 | L3 | 质量 （kg） | 组合内容 | 丝锥 夹套 | |
| CK 基础柄型号 | 同步攻丝刀柄 STC 型 | |||||||||||
| HSK-A40-CK2-STC8-85 | M 2 ～ M 4 | 2 | 25.5 | 15.8 | 132 | 47.5 | 30.5 | 17 | 0.51 | HSK-A 40-CK2- 85 | CK2-STC 8-47.5 | TC 8-d |
| HSK-A40-CK2-STC8-85 | M 5 ～ M 8 | 19 | ||||||||||
| HSK-A40-CK3-STC12-80 | M 3 ～ M12 | 3 | 32 | 22 | 146 | 66 | 36 | 30 | 0.66 | -CK3- 80 | CK3-STC12-66 | TC12-d |
| HSK-A40-CK4-STC20-73 | M 8 ～ M12 | 4 | 44 | 22 | 145 | 72 | 47 | 25 | 0.99 | -CK4- 73 | CK4-STC20-72 | TC20-d |
| HSK-A40-CK4-STC20-73 | M14 ～ M20 | 31 | ||||||||||
| HSK-A50-CK2-STC8-85 | M 2 ～ M 4 | 2 | 25.5 | 15.8 | 132 | 47.5 | 30.5 | 17 | 0.7 | HSK-A 50-CK2- 85 | CK2-STC 8-47.5 | TC 8-d |
| HSK-A50-CK2-STC8-85 | M 5 ～ M 8 | 19 | ||||||||||
| HSK-A50-CK3-STC12-80 | M 3 ～ M12 | 3 | 32 | 22 | 146 | 66 | 36 | 30 | 0.88 | -CK3- 80 | CK3-STC12-66 | TC12-d |
| HSK-A50-CK4-STC20-73 | M 8 ～ M12 | 4 | 44 | 22 | 145 | 72 | 47 | 25 | 1.22 | -CK4- 73 | CK4-STC20-72 | TC20-d |
| HSK-A50-CK4-STC20-73 | M14 ～ M20 | 31 | ||||||||||
| HSK-A50-CK5-STC30-83 | M20 ～ M30 | 5 | 55 | 41 | 175 | 92 | 54 | 38 | 1.72 | -CK5- 83 | CK5-STC30-92 | TC30-d |
| HSK-A63-CK2-STC8-90 | M 2 ～ M 4 | 2 | 25.5 | 15.8 | 137 | 47.5 | 30.5 | 17 | 1.1 | HSK-A 63-CK2- 90 | CK2-STC 8-47.5 | TC 8-d |
| HSK-A63-CK2-STC8-90 | M 5 ～ M 8 | 19 | ||||||||||
| HSK-A63-CK3-STC12-100 | M 3 ～ M12 | 3 | 32 | 22 | 166 | 66 | 36 | 30 | 1.28 | -CK3-100 | CK3-STC12-66 | TC12-d |
| HSK-A63-CK4-STC20-93 | M 8 ～ M12 | 4 | 44 | 22 | 165 | 72 | 47 | 25 | 1.62 | -CK4- 93 | CK4-STC20-72 | TC20-d |
| HSK-A63-CK4-STC20-93 | M14 ～ M20 | 31 | ||||||||||
| HSK-A63-CK5-STC30-83 | M20 ～ M30 | 5 | 55 | 41 | 175 | 92 | 54 | 38 | 2.02 | -CK5- 83 | CK5-STC30-92 | TC30-d |
| HSK-A100-CK2-STC8-115 | M 2 ～ M 4 | 2 | 25.5 | 15.8 | 162 | 47.5 | 30.5 | 17 | 2.7 | HSK-A100-CK2-115 | CK2-STC 8-47.5 | TC 8-d |
| HSK-A100-CK2-STC8-115 | M 5 ～ M 8 | 19 | ||||||||||
| HSK-A100-CK3-STC12-125 | M 3 ～ M12 | 3 | 32 | 22 | 191 | 66 | 36 | 30 | 2.98 | -CK3-125 | CK3-STC12-66 | TC12-d |
| HSK-A100-CK4-STC20-118 | M 8 ～ M12 | 4 | 44 | 22 | 190 | 72 | 47 | 25 | 3.42 | -CK4-118 | CK4-STC20-72 | TC20-d |
| HSK-A100-CK4-STC20-118 | M14 ～ M20 | 31 | ||||||||||
| HSK-A100-CK4-STC20-178 | M 8 ～ M12 | 22 | 250 | 72 | 47 | 25 | 3.92 | -CK4-178 | CK4-STC20-72 | TC20-d | ||
| HSK-A100-CK4-STC20-178 | M14 ～ M20 | 31 | ||||||||||
| HSK-A100-CK5-STC30-108 | M20 ～ M30 | 5 | 55 | 41 | 200 | 92 | 54 | 38 | 4.02 | -CK5-108 | CK5-STC30-92 | TC30-d |
| HSK-A100-CK5-STC30-183 | M20 ～ M30 | 275 | 5.12 | -CK5-183 | ||||||||
1. 有内冷孔，可以使用中心内冷。
2. 不附带TC型丝锥夹套，请另行订购。
3. 不适用于无同步攻丝功能的机床。
4. 质量含CK基础柄、同步攻丝刀柄在内。
5. 使用TC型内冷夹套时，L、L1、L3的尺寸会增加5mm。
6. 不附带内冷管。
