自营日本MST热装刀柄E50一体型

产品亮点：E50-日本MST一体式热缩刀柄特殊不锈钢材质

品　　牌: MST(恩司迪)

产品分类: 热装刀柄

型　　号: HSK-E50

配送仓库: 国内仓库

货　　期

服务保障: 发票保障

支付方式: 支付宝 微信支付 银行转账

品牌专区

售前咨询：0769-22186189

进入专区

选配推荐
最新发布

产品详情

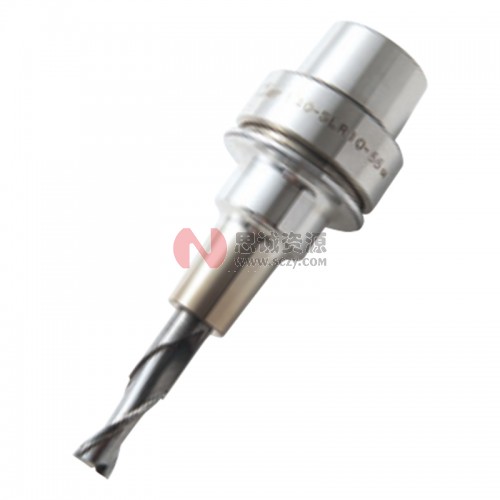

E50-日本MST一体式热缩刀柄特殊不锈钢材质

日本MST热装刀柄E50一体型

型号	φD	φC	t	L	M	L1	φC1	φC2	φD1	H	h	kg	N	S
E50-SLSA3-60-M22	3	6	1.5	60	22	12	8.3	20	4	9	50	0.4	1.3	4.7
E50-SLSA3-75-M22				75	22	27	8.3	25			61	0.5		4.5
E50-SLSA3-80-M42				80	42	12	10.4	20			70			9.3
E50-SLSA3-95-M42				95	42	27	10.4	25			81		1.7	9.1
E50-SLRA3-75-M22		7.5	2.25	75	22		9.8				61			2.8
E50-SLRA3-95-M42				95	42		11.9				81			5.3
E50-SLRA3-120-M67				120	67		14.5				106		1.8	8.9
E50-SLRA3-150-M97				150	97		17.7				136	0.6		12.9
E50-SLFB3-75-M22		9.5	3.25	75	22		11.8				61	0.5		1.9
E50-SLSA4-60-M22	4	7	1.5	60	22	12	9.3	20	5	12	50	0.4	1.3	3.6
E50-SLSA4-75-M22				75	22	27	9.3	25			61	0.5		3.6
E50-SLSA4-80-M42				80	42	12	11.4	20			70			7.3
E50-SLSA4-95-M42				95	42	27	11.4	25			85		1.8	7.4
E50-SLRA4-75-M22		10	3	75	22		12.3				61		1.7	1.7
E50-SLRA4-95-M42				95	42		14.4				81		1.8	3.1
E50-SLRA4-120-M67				120	67		17				106	0.6	1.8	5.2
E50-SLRA4-150-M97				150	97		20.2				135	0.7	2.2	7.8
E50-SLFB4-75-M22		12	4	75	22		14.3				61	0.5	1.9	1.4
E50-SLSA6-60-M22	6	9	1.5	60	22	12	11.3	20	7	18	42	0.5	1.3	2.3
E50-SLSA6-75-M22				75	22	27	11.3	25			61			2.3
E50-SLSA6-80-M42				80	42	12	13.4	20			62			4.8
E50-SLSA6-95-M42				95	42	27	13.4	25			81		1.6	4.8
E50-SLSA6-120-M67				120	67		16	25			106		1.8	8.1
E50-SLSA6-150-M97				150	97		19.2	32			135	0.6	2.3	11.0
E50-SLSB6-95-M42		10	2	95	42		14.4	25			77	0.5	1.8	3.9
E50-SLSB6-120-M67				120	67		17	25			102	0.6	1.8	6.5
E50-SLSB6-150-M97				150	97		20.2	32			135	0.7	2.3	8.5
E50-SLRA6-60-M22		12	3	60	22	12	14.3	26	6.6		44	0.5	1.4	1.2
E50-SLRA6-75-M22				75	22	27	14.3	25	7		61		1.5	1.3
E50-SLRA6-95-M42				95	42		16.4				81		1.8	2.5
E50-SLRA6-120-M67				120	67		19				106	0.6	1.9	4.1
E50-SLRB6-95-M42		14	4	95	42		18.4	32			80		2.2	1.6
E50-SLFB6-75-M22		14	4	75	22		16.3	32			60		2.1	1.0
E50-SLSA8-65-M22	8	11	1.5	65	22	17	13.3	26	8.6	24	49	0.5	1.5	1.5
E50-SLSA8-75-M22				75	22	27	15.4	25	9		61		1.6	1.6
E50-SLSA8-85-M42				85	42	17		26	8.6		67		1.6	3.2
E50-SLSA8-95-M42				95	42	27		25	9		81		2.2	3.5
E50-SLSA8-120-M67				120	67		18	32			105	0.6	2.3	5.4
E50-SLSA8-150-M97				150	97		21.2	32			132	0.7	2.4	8.1
E50-SLSB8-95-M42	8	13	2.5	95	42	27	17.4	32	9	24	77	0.6	2.2	2.2
E50-SLSB8-120-M67				120	67		20				105	0.6	2.3	3.5
E50-SLSB8-150-M97				150	97		23.2				132	0.7	2.4	5.3
E50-SLRA8-60-M22		14	3	60	22	12	16.3	26	8.6	20	44	0.5	1.4	0.9
E50-SLRA8-75-M22				75	22	27	16.3	25	9	24	61		1.5	1.1
E50-SLRA8-95-M42				95	42		18.4	25			81		1.8	2.0
E50-SLRB8-95-M42		18	5	95	42		22.4	32			77	0.6	2.2	1.1
E50-SLRB8-120-M67				120	67		25				105	0.7	2.3	1.7
E50-SLFB8-75-M22				75	22		20.3				60	0.6	2.2	0.7

型号	φD	φC	t	L	M	L1	φC1	φC2	φD1	H	h	kg	N	S
E50-SLSA10-65-M22	10	13	1.5	65	22	17	15.3	26	10.6	30	49	0.5	1.5	1.1
E50-SLSA10-75-M22				75	22	27	15.3	25	11		61		1.6	1.3
E50-SLSA10-85-M42				85	42	17	17.4	26	10.6		64		1.6	2.4
E50-SLSA10-95-M42				95	42	27	17.4	25	11		81		2.2	2.6
E50-SLSA10-120-M67				120	67		20	32			105	0.6	2.3	4.1
E50-SLSA10-150-M97				150	97		23.2				64	0.7	2.5	6.2
E50-SLSB10-95-M42		16	3	95	42		20.4				80	0.6	2.2	1.5
E50-SLSB10-120-M67				120	67		23				105	0.7	2.4	2.4
E50-SLSB10-150-M97				150	97		26.2				135	0.7	2.5	3.7
E50-SLRA10-60-M22				60	22	12	18.3	26	10.6	25	44	0.5	1.4	0.8
E50-SLRA10-75-M22				75	22	27	18.3	25	11	30	60	0.6	1.5	1.0
E50-SLRB10-95-M42		22	6	95	42		26.4	32			64	0.7	2.3	0.9
E50-SLRB10-120-M67				120	67		29	42			107	0.8	3.2	1.1
E50-SLFB10-75-M22				75	22		24.3	32	16		60	0.6	2.2	0.6
E50-SLSA12-65-M22	12	15	1.5	65	22	17	17.3	26	12.6	25	49	0.5	1.6	0.9
E50-SLSA12-75-M22				75	22	27	17.3	25	13	30	60		1.7	1.1
E50-SLSA12-85-M42				85	42	17	19.4	26	12.6		64		1.7	1.9
E50-SLSA12-95-M42				95	42	27	19.4	32	13		80		2.2	1.9
E50-SLSA12-120-M67				120	67		22				105	0.6	2.4	3.3
E50-SLSB12-95-M42		19	3.5	95	42		23.4				64	0.6	2.3	1.2
E50-SLSB12-120-M67				120	67		26				64	0.7	2.5	1.9
E50-SLSB12-150-M97				150	97		29.2				135	0.9	3.5	2.5
E50-SLRA12-60-M22		20	4	60	22	12	22.3	26	12.6	25	44	0.5	1.5	0.6
E50-SLRA12-75-M22		20	4	75	22	27	22.3	25	13	30	62	0.6	1.6	0.9
E50-SLRB12-95-M42		26	7	95	42		30.4	42			82	0.8	3.1	0.6
E50-SLRB12-120-M67				120	67		33				64	0.9	3.3	0.9
E50-SLFB12-75-M22				75	22		28.3				62	0.7	3.0	0.4
E50-SLSB16-95-M42	16	24	4	95	42	27	28.4	42	17	32	81	0.7	3.2	0.8
E50-SLSB16-120-M67		24	4	120	67	27	31	42	17		81	0.8	3.5	1.2
E50-SLRA16-60-M22		26	5	60	22	12	28.3	34	16.6		44	0.6	1.7	0.4
E50-SLRB16-75-M22		32	8	75		27	34.3	42	17		62	0.7	3.0
E50-SLFB16-75-M22		32	8	75		27	34.3	42	17		62	0.7	3.0
E50-SLSB20-95-M42	20	29	4.5	95	42	27	33.4	42	21	40	82	0.7	3.3	0.6
E50-SLRA20-65-M22	20	32	6	65	22	17	34.3	40	20.6	38	49	0.6	2.2	0.3

型号	φD	φC	t	L	M	φC1	φD1	H	ｈ	Kg	N	S
E50-SLSA4-90CV	4	7	1.5	90	64	42	5	12	74	0.6	2.2	1.8
E50-SLSA4-120CV				120	94				104	0.6	2.6	4.2
E50-SLSA4-150CV				150	124				134	0.7	3.3	6.0
E50-SLSA4-180CV				180	154				164	0.8	3.5	12.0
E50-SLRA4-120CV	4	10	3	120	94	42	5	12	104	0.7	2.8	2.7
E50-SLRA4-150CV	4	10	3	150	124	42	5	12	134	0.8	3.4	4.1
E50-SLSA6-90CV	6	9	1.5	90	64	42	7	18	74	0.6	2.3	1.6
E50-SLSA6-120CV				120	94				104	0.6	2.7	3.5
E50-SLSA6-150CV				150	124				134	0.7	3.4	5.4
E50-SLSA6-180CV				180	154				164	0.9	4.2	7.6
E50-SLRA6-120CV	6	13	3.5	120	94	42	7	18	104	0.8	3.3	1.8
E50-SLRA6-150CV	6	13	3.5	150	124	42	7	18	132	0.9	4.0	2.7
E50-SLSA8-90CV	8	11	1.5	90	64	42	9	24	74	0.6	2.5	1.4
E50-SLSA8-120CV				120	94				104	0.7	3.2	2.2
E50-SLSA8-150CV				150	124				134	0.7	3.5	4.9
E50-SLSA8-180CV				180	154				164	0.8	4.2	7.1
E50-SLRA8-120CV	8	16	4	120	94	42	9	24	102	0.8	3.8	1.3
E50-SLRA8-150CV	8	16	4	150	124	42	9	24	132	0.9	4.0	2.7
E50-SLSA10-90CV	10	13	1.5	90	64	42	11	30	74	0.6	2.5	1.3
E50-SLSA10-120CV				120	94				104	0.7	3.3	2.1
E50-SLSA10-150CV				150	124				134	0.8	4.1	3.4
E50-SLSA10-180CV				180	154				164	0.8	4.3	6.9
E50-SLRA10-150CV	10	19	4.5	150	124	42	11	30	132	0.9	4.4	2.2
