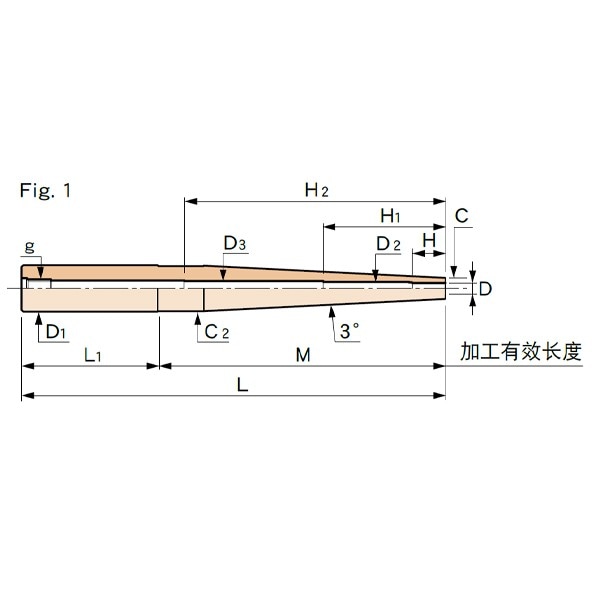

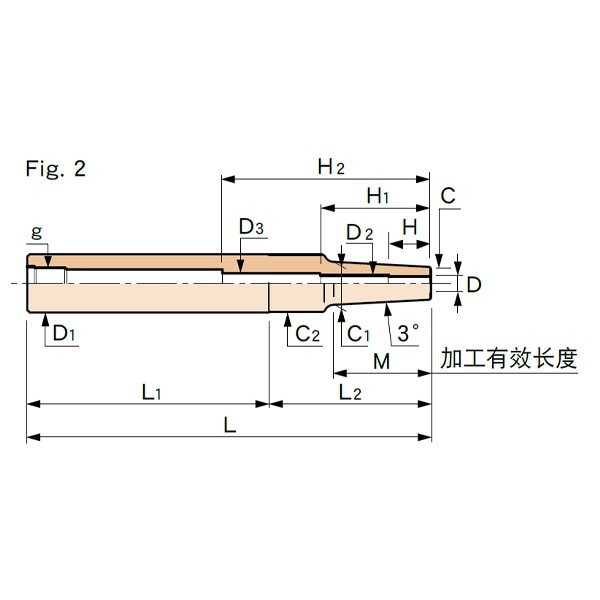

型号 | Fig. | φD | φC | t(壁厚) | L | M | φD1 | H | L1 | L2 | φC1 | φC2 | g | h | kg | φD2 | φD3 | H1 | H2 |
ST20-SLRA4-175-M95 | 1 | 4 | 10 | 3 | 175 | 95 | 20 | 12 | 80 | ー | − | 19.5 | M10 | 147 | 0.3 | 5 | 6 | 53.7 | 99.3 |
ST20-SLSA4-200-M97 | 2 | 4 | 7 | 1.5 | 200 | 97 | 20 | 12 | 90 | 110 | 17.2 | 19.5 | M10 | 172 | 0.3 | 5 | 7 | 39.4 | 104.5 |
品牌:FANUC(发那科)
型号:M-20iD/35
