自营ER-011599 ER-050195 EROWA定位片100 M8 (一套10组)

产品亮点:规格:防腐蚀,每组含4个M8的支撑脚和4个M5螺钉 应用:工件和电极 安装:直接装于毛坯的平面上
品  牌
EROWA(爱路华)
产品分类
夹具配件
型  号
ER-011599
配送仓库
国内仓库
货  期
服务保障
发票保障
支付方式
支付宝 微信支付 银行转账

品牌专区

售前咨询:0769-22186189

产品详情
规格:防腐蚀,每组含4个M8的支撑脚和4个M5螺钉 应用:工件和电极 安装:直接装于毛坯的平面上
EROWA夹具定位片ER-011599/ER-050195
EROWA ITS定位片
定位片是夹持电极的最经济的基础件。它可直接装于电极毛胚上。这样,电极的夹具也与ITS匹配。
安装孔的布孔只需简单地用钻孔模板或用在NC编程的方法,直接在胚料上钻孔。
技术参数ITS定位片
 材料 防腐蚀
 在卡签署上的系统精度 0.002mm
规格
 定位50 小型电极
定位片100 M8 工件和电极
 定位片G 工件,切削加工中的夹具
 操作 用EROWA搬运系统或电极交换装转置

ER-011599,EROWA定位片100 M8 (一套10组)

ER-050195,EROWA定位片100 M8 (一组)

规格:防腐蚀,每组含4个M8的支撑脚和4个M5螺钉

应用:工件和电极

安装:直接装于毛坯的平面上


ER-011599 Centering Plate 100 M8 (set of 10 pieces)

ER-050195 Center ing plate 100 M8 (1 Unit)

Version: Corrosion-resistant, including 4 supporting fee M8 and 4 X M5 screws per plate.

Application: Workpieces and electrodes.

Mounting: Mounted directly on of blank plane surface of blank

ER-011599 ER-050195 EROWA定位片100 M8 (一套10组)

ER-011599 er-050195 erowa定位片100 m8 (一套10组)

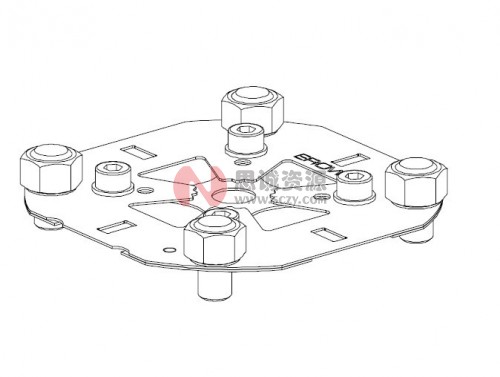

Centering plate 100 M8

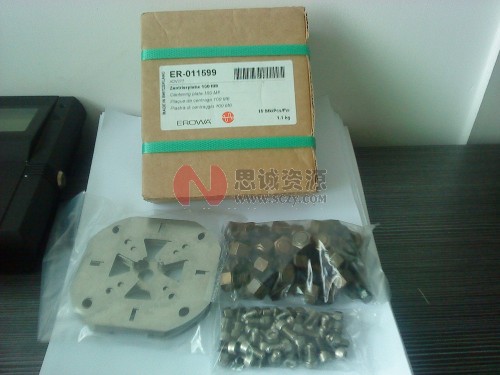

Check package contents
Centering plate
Base plate
Support foot M8
Bolts M5
Washer ø 5.3 / 10 x 1

ER-011599 er-050195 erowa定位片100 m8 (一套10组) title=

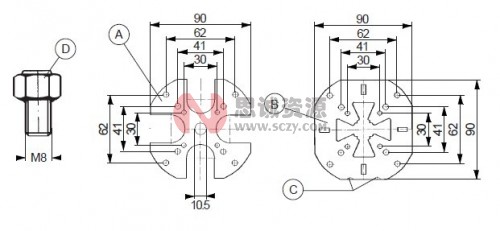

Technical data
Application: for electrodes of min. ø 100mm and 90mm
A ) Base plate(thickness: 0.6mm)
B ) Centering plate (thickness: 0.6mm)
C ) Positioning mark and reference marks
D ) Support foot SW13 M8x16

ER-011599 er-050195 erowa定位片100 m8 (一套10组) title=

Setting up
Preparations
- Machine the surface to which centering plate is to be fitted. Note that turning provides a more even surface than milling.
- Drill holes according to the pattern shown below. For this purpose, we supply a drill template ER-010710 (option) as an option. The hole pattern can also be produced with the help of an CNC machine.

Note:
The ø 8mm and ø10mm holes are to accommodate the prismatic spigots of the rapid-action chuck and must therefore be drilled in any case.
The ø 4H7 holes are only necessary if the centering plate must be aligned in relation to a given reference surface.

ER-011599 er-050195 erowa定位片100 m8 (一套10组)

Assembly
Put base plate on the hole pattern of the blank.
Put centering plate on top in the congruent position.

Note:
The positioning marks (A) must be visible on the side of the support feet. If a reference surface has been given, the reference surface has been given, the reference marks must refer to it.

ER-011599 er-050195 erowa定位片100 m8 (一套10组)

- If necessary, align centering plate with ø4 straight pins. Remove the straight pins after the alingnment.
- Turn the 4 support feet into the M8 threads (C) and tighten to 35 Nm.
- Turn the 4 screws M5 (B) with washers (G) into the M5 threads (B) and tighten to 6Nm.

ER-011599 ER-050195 EROWA定位片100 M8 (一套10组)

After assembly, grind the support feet to the tolerated measurement of 11.2 +0.01/-0.05 (D). Try to achieve an evenness of 0.001mm. If necessary, lap the support feet.

ER-011599 ER-050195 EROWA定位片100 M8 (一套10组)

Note:
Measuring points on the mounting surface are possible in the notches (E) or beside the plates (F), depending on the version.

ER-011599 er-050195 erowa定位片100 m8 (一套10组)
