自营日本弥满和YAMAWA挤压丝攻系列 HP+RZ/HP-RZ高碳钢用挤压丝攻
产品亮点：HP+RZ/HP-RZ高碳钢用挤压丝攻
- 选配推荐
- 最新发布
产品详情
HP+RZ/HP-RZ高碳钢用挤压丝攻
油沟数：
HP+RZ/HP-RZ
高碳钢用挤压丝攻
样式特长

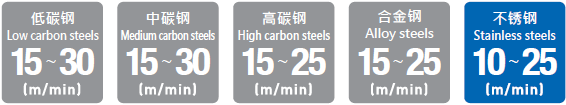

被削材和推荐的攻牙速度
■适合加工钢铁合金（35HRC以下）或轻合金，并可用于高速加工（20~50m/min）的挤压丝攻。
| HP+RZ | ~M6 |
| HP-RZ | M8~, U全部 |
带*为推荐等级
品区：1J

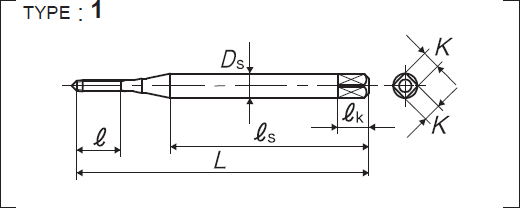

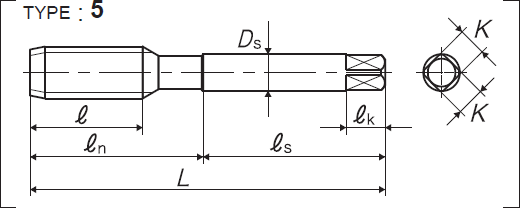

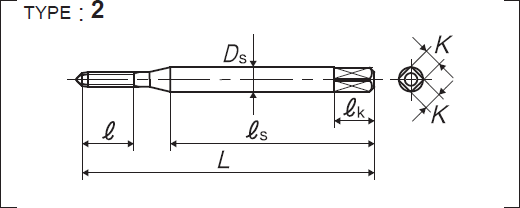

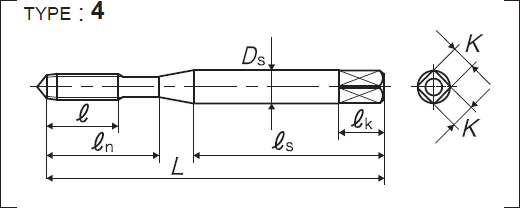

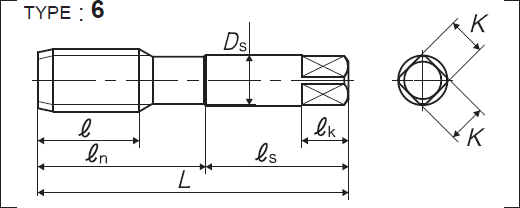

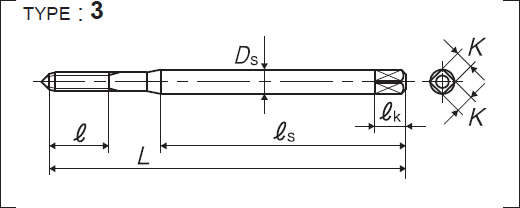

| 全长 | 螺纹部长 | 颈下长 | 柄部长 | 柄径 | 四角部宽 | 四角部长 |
| L | e | en | es | Ds | k | ek |
| 尺寸 | 等级 | 产品编号 | 吃入部 | L (mm) |
e (mm) |
en (mm) |
es (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 公制螺纹专用 | |||||||||||||
| M1×0.25 | *G4 | HRZP41.0BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 4 | 1 | ○ |
| M1.2×0.25 | *G4 | HRZP41.2BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 4 | 1 | ○ |
| M1.4×0.3 | *G4 | HRZP41.4CB | 2P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 4 | 1 | ○ |
| M1.6×0.35 | *G4 | HRZP41.6DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 4 | 2 | ○ |
| M1.7×0.35 | *G4 | HRZP41.7DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 4 | 2 | ○ |
| M2×0.4 | *G4 | HRZP42.0EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 4 | 3 | ◎ |
| G5 | HRZP52.0EB | ||||||||||||
| M2.3×0.4 | *G4 | HRZP42.3EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 4 | 3 | ○ |
| G5 | HRZP52.3EB | ||||||||||||
| M2.5×0.45 | *G5 | HRZP52.5FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 4 | 4 | ◎ |
| G6 | HRZP62.5FB | ○ | |||||||||||
| M2.6×0.45 | *G5 | HRZP52.6FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 4 | 4 | ○ |
| G6 | HRZP62.6FB | ||||||||||||
| M3×0.5 | *G5 | HRZP53.0GP | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4 | 4 | ◎ |
| HRZP53.0GB | 2P | ||||||||||||
| G6 | HRZP63.0GP | 4P | ○ | ||||||||||
| HRZP63.0GB | 2P | ||||||||||||
| M3.5×0.6 | *G5 | HRZP53.5HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4 | 4 | △ |
| HRZP53.5HB | 2P | ||||||||||||
| G6 | HRZP63.5HP | 4P | |||||||||||
| HRZP63.5HB | 2P | ||||||||||||
| M4×0.7 | *G6 | HRZP64.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 4 | ○ |
| HRZP64.0IB | 2P | ||||||||||||
| G7 | HRZP74.0IP | 4P | |||||||||||
| HRZP74.0IB | 2P | ||||||||||||
| M5×0.8 | *G6 | HRZP65.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 4 | ○ |
| HRZP65.0KB | 2P | ||||||||||||
| G7 | HRZP75.0KP | 4P | |||||||||||
| HRZP75.0KB | 2P | ||||||||||||
| M6×1 | G6 | HRZP66.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 4 | ○ |
| HRZP66.0MB | 2P | ||||||||||||
| *G7 | HRZP76.0MP | 4P | |||||||||||
| HRZP76.0MB | 2P | ||||||||||||
| M8×1.25 | *G7 | HRZM78.0NP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 6 | 5 | ○ |
| HRZM78.0NB | 2P | ||||||||||||
| G8 | HRZM88.0NP | 4P | |||||||||||
| HRZM88.0NB | 2P | ||||||||||||
| M10×1.5 | *G7 | HRZM7010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 8 | 5 | ○ |
| HRZM7010OB | 2P | ||||||||||||
| G8 | HRZM8010OP | 4P | △ | ||||||||||
| HRZM8010OB | 2P | ||||||||||||
| M10×1.25 | *G7 | HRZM7010NP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 8 | 5 | ○ |
| HRZM7010NB | 2P | ||||||||||||
| G8 | HRZM8010NP | 4P | △ | ||||||||||
| HRZM8010NB | 2P | ||||||||||||
| M12×1.75 | *G8 | HRZM8012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 8 | 5 | △ |
| HRZM8012PB | 2P | ||||||||||||
| G9 | HRZM9012PP | 4P | |||||||||||
| HRZM9012PB | 2P | ||||||||||||
| M12×1.5 | *G8 | HRZM8012OP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 8 | 5 | ○ |
| HRZM8012OB | 2P | ||||||||||||
| G9 | HRZM9012OP | 4P | △ | ||||||||||
| HRZM9012OB | 2P | ||||||||||||
| M12×1.25 | G8 | HRZM8012NP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 8 | 5 | △ |
| HRZM8012NB | 2P | ||||||||||||
| *G9 | HRZM9012NP | 4P | |||||||||||
| HRZM9012NB | 2P | ||||||||||||
| M14×1.5 | *G9 | HRZM9014OP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 8 | 5 | △ |
| HRZM9014OB | 2P | ||||||||||||
| M16×1.5 | *G9 | HRZM9016OP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 8 | 5 | △ |
| HRZM9016OB | 2P | ||||||||||||
| M18×1.5 | *G9 | HRZM9018OP | 4P | 100 | 33 | - | 51 | 14 | 11 | 14 | 8 | 5 | △ |
| HRZM9018OB | 2P | ||||||||||||
| M20×1.5 | *G9 | HRZM9020OP | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 8 | 6 | △ |
| HRZM9020OB | 2P | ||||||||||||
| 美制螺纹用 | |||||||||||||
| No.2-56UNC | *G4 | HRZM4UN2EB | 2P | 42 | 8.1 | - | 27 | 3 | 2.5 | 5 | 4 | 3 | △ |
| G5 | HRZM5UN2EB | ||||||||||||
| No.2-64UNF | *G4 | HRZM4UN2DB | 2P | 42 | 8.1 | - | 27 | 3 | 2.5 | 5 | 4 | 3 | △ |
| No.3-48UNC | *G4 | HRZM4UN3FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 4 | 4 | △ |
| No.3-56UNF | *G4 | HRZM4UN3EB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 4 | 4 | △ |
| No.4-40UNC | *G5 | HRZM5UN4HB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4 | 4 | ○ |
| G6 | HRZM6UN4HB | ||||||||||||
| No.4-48UNF | *G5 | HRZM5UN4FB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4 | 4 | △ |
| No.5-40UNC | *G5 | HRZM5UN5HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4 | 4 | △ |
| HRZM5UN5HB | 2P | ||||||||||||
| No.5-44UNF | *G5 | HRZM5UN5GP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4 | 4 | △ |
| HRZM5UN5GB | 2P | ||||||||||||
| No.6-32UNC | *G5 | HRZM5UN6JP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4 | 4 | △ |
| HRZM5UN6JB | 2P | ||||||||||||
| G6 | HRZM6UN6JP | 4P | |||||||||||
| HRZM6UN6JB | 2P | ||||||||||||
| No.6-40UNF | *G5 | HRZM5UN6HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4 | 4 | △ |
| HRZM5UN6HB | 2P | ||||||||||||
| No.8-32UNC | *G6 | HRZM6UN8JP | 4P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UN8JB | 2P | ||||||||||||
| G7 | HRZM7UN8JP | 4P | |||||||||||
| HRZM7UN8JB | 2P | ||||||||||||
| No.8-36UNF | *G6 | HRZM6UN8IP | 4P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UN8IB | 2P | ||||||||||||
| No.10-24UNC | *G6 | HRZM6UNAMP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UNAMB | 2P | ||||||||||||
| G7 | HRZM7UNAMP | 4P | |||||||||||
| HRZM7UNAMB | 2P | ||||||||||||
| No.10-32UNF | *G6 | HRZM6UNAJP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UNAJB | 2P | ||||||||||||
| G7 | HRZM7UNAJP | 4P | |||||||||||
| HRZM7UNAJB | 2P | ||||||||||||
| No.12-24UNC | *G6 | HRZM6UNCMP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UNCMB | 2P | ||||||||||||
| No.12-28UNF | *G6 | HRZM6UNCKP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 4 | △ |
| HRZM6UNCKB | 2P | ||||||||||||
| 1/4-20UNC | *G7 | HRZM7U04NP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 4 | △ |
| HRZM7U04NB | 2P | ||||||||||||
| 1/4-28UNF | *G7 | HRZM7U04KP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 4 | △ |
| HRZM7U04KB | 2P |
公制螺纹：M2.6以下=无、M3~M7=2、M8=3、M10以上=4
美制螺纹用：No.4以下=无、No.5以上=2
M6以下吃入部2P的产品，切除凸型中心。（呈平头）
