自营日本弥满和YAMAWA螺旋丝攻（盲孔用） AL+SP/AL-SP铝合金用螺旋丝攻
产品亮点：铝合金用螺旋丝攻
- 选配推荐
- 最新发布
产品详情
铝合金用螺旋丝攻
AL+SP/AL-SP
AL+SP/AL-SP
铝合金用螺旋丝攻
样式特长
| AL+SP | ~M6 |
| AL-SP | M8~, STI 全部 |

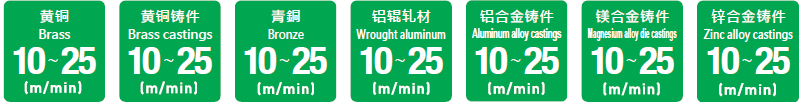

被削材和推荐的攻牙速度
产品的特长
●可在高速范围稳定加工铝合金铸件、铝合金压铸件的螺旋丝攻。

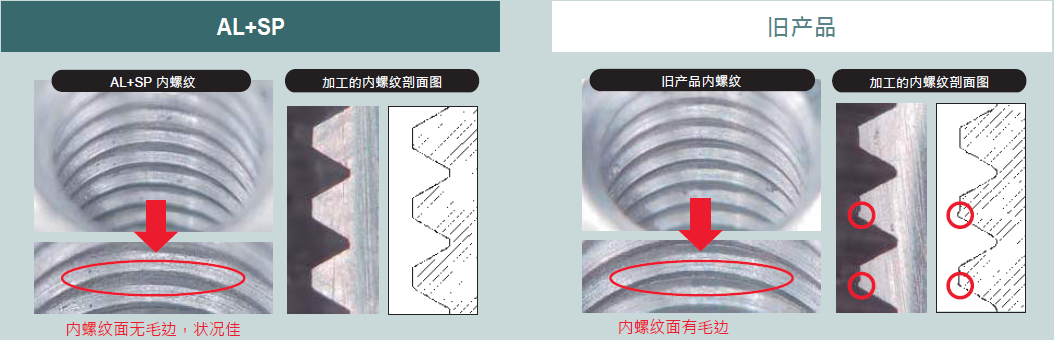

●刀刃部采最佳设计，可预制加工轻合金时，内径容易产生毛边的问题，可安定的加工出平滑的内螺纹。
攻牙资料
加工条件[M6X1]
| 被削材 | AC4C |
| 底孔径 | φ 5·0 |
| 攻牙长度 | 9mm 盲孔 |
| 攻牙速度 | 20m/min |
| 机械 | 立式加工中心机 |
| 攻牙用切削油 | 水溶性切削油 （不含氯稀释20倍） |

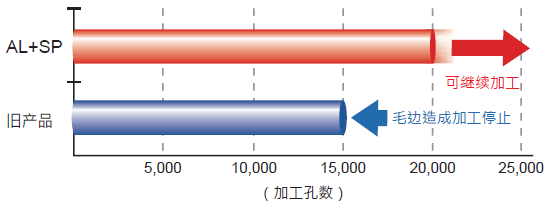

●AL+SP与旧产品相比，内螺纹质量佳，使用寿命长
品区：1C

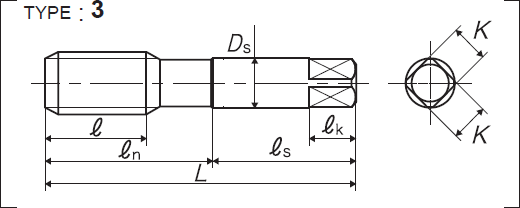

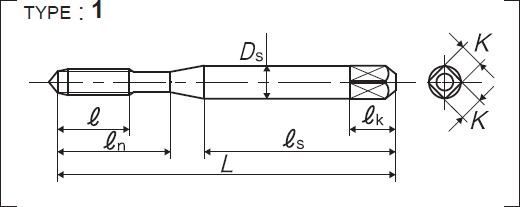

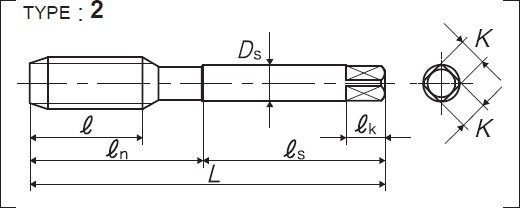

| 尺寸 | 等级 | 产品编号 | 吃入部 | L (mm) |
e (mm) |
en (mm) |
es (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 公制螺纹专用 | |||||||||||||
| M2×0.4 | P2 | ASHPQ2.0E | 2.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 | ○ |
| M2.3×0.4 | P2 | ASHPQ2.3E | 2.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 | △ |
| M2.5×0.45 | P2 | ASHPQ2.5F | 2.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 | ○ |
| M2.6×0.45 | P2 | ASHPQ2.6F | 2.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 | ○ |
| M3×0.5 | P2 | ASHPQ3.0G | 2.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 1 | ○ |
| M3.5×0.6 | P2 | ASHPQ3.5H | 2.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 1 | △ |
| M4×0.7 | P3 | ASHPR4.0I | 2.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 1 | ○ |
| M5×0.8 | P3 | ASHPR5.0K | 2.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 | ○ |
| M6×1 | P3 | ASHPR6.0M | 2.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 | ○ |
| M8×1.25 | P3 | ASHMR8.0N | 2.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 2 | ○ |
| M10×1.5 | P3 | ASHMR010O | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | ○ |
| M10×1.25 | P3 | ASHMR010N | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | △ |
| M10×1 | P3 | ASHMR010M | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | △ |
| M12×1.75 | P3 | ASHMR012P | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | ○ |
| M12×1.5 | P3 | ASHMR012O | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| M12×1.25 | P3 | ASHMR012N | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| M12×1 | P3 | ASHMR012M | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| M14×2 | P3 | ASHMR014Q | 2.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | △ |
| M14×1.5 | P3 | ASHMR014O | 2.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | △ |
| M16×2 | P3 | ASHMR016Q | 2.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | △ |
| M16×1.5 | P3 | ASHMR016O | 2.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | △ |
| 尺寸 | 等级 | 产品编号 | 吃入部 | 大径的基准值 (mm) |
L (mm) |
e (mm) |
en (mm) |
es (mm) |
Ds (mm) |
K (mm) |
ek (mm) |
沟数 | 构型 | 库存 |
| 螺纹护套公制螺纹用 | ||||||||||||||
| STI M3×0.5 | 1b | SW3.0G1LEN | 2.5P | 3.65 | 52 | 7.5 | 17 | 29 | 5 | 4 | 7 | 3 | 1 | ○ |
| STI M4×0.7 | 1b | SW4.0I1LEN | 2.5P | 4.909 | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 | ○ |
| STI M5×0.8 | 1b | SW5.0K1LEN | 2.5P | 6.039 | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 | ○ |
| STI M6×1 | 1b | SW6.0M1LEN | 2.5P | 7.299 | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 2 | ○ |
| STI M8×1.25 | 1b | SW8.0N1LEN | 2.5P | 9.624 | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 | ○ |
| STI M10×1.5 | 1b | SW010O1LEN | 2.5P | 11.948 | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | ○ |
| STI M10×1.25 | 1b | SW010N1LEN | 2.5P | 11.624 | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 | △ |
| STI M12×1.75 | 1b | SW012P1LEN | 2.5P | 14.273 | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | ○ |
| STI M12×1.5 | 1b | SW012O1LEN | 2.5P | 13.948 | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | △ |
| STI M12×1.25 | 1b | SW012N1LEN | 2.5P | 13.624 | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 2 | △ |
| STI M14×2 | 1b | SW014Q1LEN | 2.5P | 16.598 | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 2 | △ |
| STI M14×1.5 | 1b | SW014O1LEN | 2.5P | 15.948 | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 2 | △ |
| STI M16×2 | 1b | SW016Q1LEN | 2.5P | 18.598 | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 3 | ○ |
| STI M16×1.5 | 1b | SW016O1LEN | 2.5P | 17.948 | 100 | 33 | - | 51 | 14 | 11 | 14 | 4 | 3 | △ |
| STI M18×2.5 | 1b | SW018R1LEN | 2.5P | 21.248 | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 3 | △ |
| STI M18×1.5 | 1b | SW018O1LEN | 2.5P | 19.948 | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 3 | △ |
| STI M20×2.5 | 1b | SW020R1LEN | 2.5P | 23.248 | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 3 | ○ |
| STI M20×1.5 | 1b | SW020O1LEN | 2.5P | 21.948 | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 3 | △ |
| STI M22×2.5 | 1b | SW022R1LEN | 2.5P | 25.248 | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 3 | △ |
| STI M24×3 | 1b | SW024S1LEN | 2.5P | 27.897 | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 3 | ○ |
