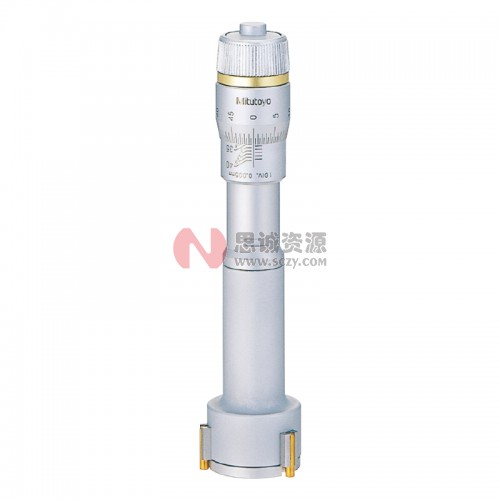

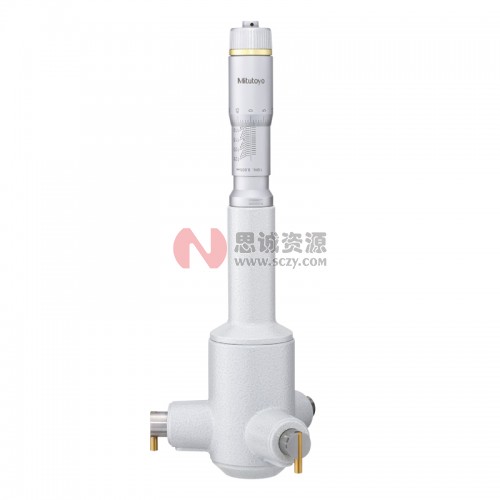

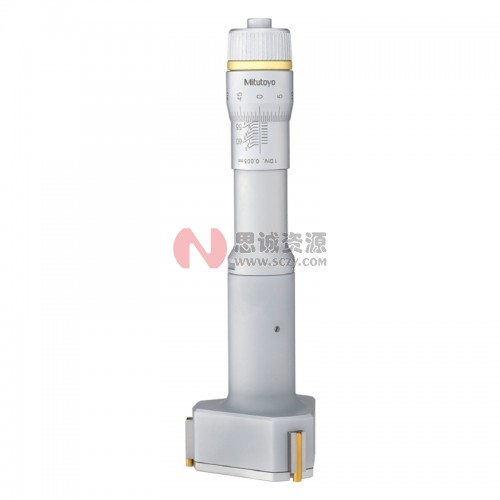

Mitutoyo三丰三爪/二爪式孔径千分尺图1Mitutoyo三丰三爪/二爪式孔径千分尺图2Mitutoyo三丰三爪/二爪式孔径千分尺图3Mitutoyo三丰三爪/二爪式孔径千分尺图4
￥待询价（提交订单10分钟内获取专属报价单）

自营Mitutoyo三丰三爪/二爪式孔径千分尺

产品亮点：三爪孔径千分尺的钛涂层量爪具有良好的耐用性好和抗冲击性。仪器可直达盲孔底端测量。
品　　牌
Mitutoyo(三丰)
产品分类
千分尺
型　　号
D·E·HT-R
配送仓库
国内仓库
货　　期
服务保障
发票保障
支付方式
支付宝 微信支付 银行转账

品牌专区

售前咨询：0769-22186189

进入专区
  • 选配推荐
  • 最新发布
产品详情
三爪孔径千分尺的钛涂层量爪具有良好的耐用性好和抗冲击性。仪器可直达盲孔底端测量。

三爪孔径千分尺的钛涂层量爪具有良好的耐用性好和抗冲击性。仪器可直达盲孔底端测量。


测量范围
(mm)		L3
(mm)		L4
(mm)		L5
(mm)
2 -     6——2
6 -   122    或以下—2.5
12 -   200.3 或以下5.63.5
20 -   308.35.2
30 -   5013.010.0
50 - 10017.014.0
100 - 30012.4 或以下21.013.8

货号测量范围分度值精度*1接长杆 (选件)
(二爪式)
368-001		2 - 2.5mm0.001mm—
368-0022.5 - 3mm
368-0033 - 4mm
368-0044 - 5mm
368-0055 - 6mm
(三爪式)
368-161		6 - 8mm±2µm (小于 2µm)952322 (100mm)
368-1628 - 10mm
368-16310 - 12mm
368-16412 - 16mm0.005mm952621 (150mm)
368-16516 - 20mm
368-16620 - 25mm±3µm (小于 3µm)952622 (150mm)
368-16725 - 30mm
368-16830 - 40mm
368-16940 - 50mm
368-17050 - 63mm952623 (150mm)
368-17162 - 75mm
368-17275 - 88mm
368-17387 - 100mm
368-174100 - 125mm±5µm (小于 5µm)
368-175125 - 150mm
368-176150 - 175mm
368-177175 - 200mm
368-178200 - 225mm
368-179225 - 250mm
368-180250 - 275mm
368-181275 - 300mm


测量范围L2L1
2 - 2.5, 2.5 - 3mm12103.5 - 104
3 - 4, 4 - 5, 5 - 6mm22113 - 114


测量范围L2L1
6 - 8, 8 - 10, 10 - 12mm59102 - 104
12 - 16, 16 - 20mm82126 - 130
20 - 25, 25 - 30mm94137 - 142
30 - 40, 40 - 50mm102145 - 155
50 - 63, 62 - 75, 75 - 88, 87 - 100mm105150 - 163
100 - 125, 125 - 150, 150 - 175, 175 - 200,
200 - 225, 225 - 250, 250 - 275, 275 - 300mm		161227 - 252

套装货号测量范围*分度值套装内容
(二爪式)
368-906		2 - 3mm0.001mm测微头装置
2 - 2.5mm                                                    1 个
2.5 - 3mm                                                    1 个 校正环规 (ø2.5)                                                        1 个 内六角扳手                                1 个
368-9073 - 6mm测微头装置
3 - 4mm                                                       1 个
4 - 5mm                                                       1 个
5 - 6mm                                                       1 个 校正环规 (ø4, ø5)                                                各1 个 内六角扳手                                1 个
(三爪式)
368-911		6 - 12mm测微头装置
6 - 8mm                                                       1 个
8 - 10mm                                                     1 个
10 - 12mm                                                   1 个 校正环规 (ø8, ø10)                                             各1 个 接长杆 (100mm)                                         1 个 扳手                                        2 个 内六角扳手                                1 个
368-91212 - 20mm0.005mm测微头装置
12 - 16mm                                                   1 个
16 - 20mm                                                   1 个 校正环规 (ø16)                                                     1 个 接长杆 (150mm)                                         1 个 扳手                                        2 个 内六角扳手                                1 个
368-91320 - 50mm测微头装置
20 - 25mm                                                   1 个
25 - 30mm                                                   1 个
30 - 40mm                                                   1 个
40 - 50mm                                                   1 个 校正环规 (ø25, ø40)                                           各1 个 接长杆 (150mm)                                         1 个 扳手                                        2 个 内六角扳手                                1 个
368-91450 - 100mm测微头装置
50 - 63mm                                                   1 个
62 - 75mm                                                   1 个
75 - 88mm                                                   1 个
87 - 100mm                                                 1 个 校正环规 (ø62, ø87)                                           各1 个 接长杆 (150mm)                                         1 个 扳手                                        2 个 内六角扳手                                1 个
368-915100 - 200mm测微头装置
100 - 125mm                                               1 个
125 - 150mm                                               1 个
150 - 175mm                                               1 个
175 - 200mm                                               1 个 校正环规 (ø125, ø175)                                        各1 个 接长杆 (150mm)                                         1 个 扳手                                        2 个 内六角扳手                                1 个
